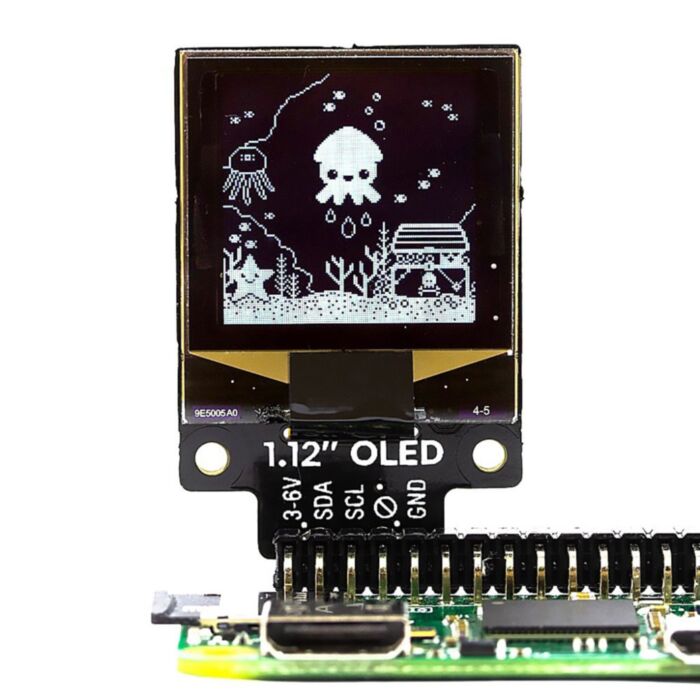

Pimoroni 1.12" Mono OLED (128x128, white/black) Breakout

Rating:

100% of 100

SKU: CE05769 Brand: Pimoroni

A crisp, bright 1.12" OLED that's ideal for adding a small display to your project. Raspberry Pi and Arduino-compatible, this 128x128 pixel, monochrome white/black display is ideal for graphing, readouts, and displaying basic icons

$40.60 AUD, inc GST

$36.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $35.80 (exc GST)
25+ $35.06 (exc GST)

OLEDs have the advantage of being extremely bright and readable, with great contrast. Because this one is small, it's great for fitting into projects where space is at a premium.

Like Pimoroni's other breakouts, this one just pops straight onto your Pi's pins once you've soldered on the included right-angle female header, and they've included a trace that can be cut to change the I2C address from 0x3C to 0x3D, if you want to use two at once!

It's also compatible with Pimoroni's fancy new Breakout Garden, where using breakouts is as easy just popping it into one of the six slots and starting to grow your project, create, and code.

Features

1.12" white OLED display (128x128 pixels)
20x20mm active area
I2C interface (address 0x3C/0x3D (cut trace))
3.3V or 5V compatible
Reverse polarity protection
Compatible with all models of Raspberry Pi, and Arduino
Python library
Dimensions: 28x42.1mm.

Contains

1.12" OLED display breakout
1x5 male header
1x5 female right-angle header

Pimoroni has designed this breakout board so that you can solder on the piece of right-angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 7, 9).

Software

Pimoroni recommend the Luma Python library for driving this OLED display. You can find full documentation for the Luma library here.

Software does not support Raspbian Wheezy.
