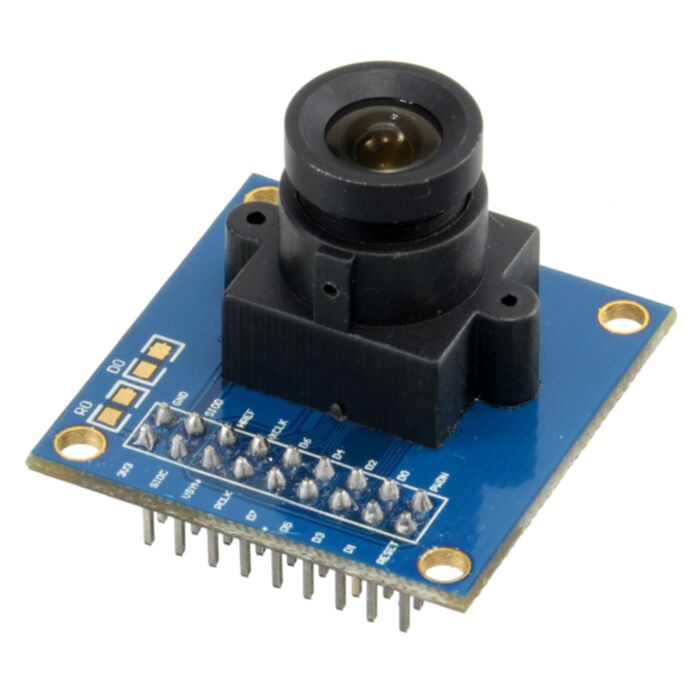

VGA OV7670 Camera Module I2C 640X480

SKU: 018-DB-OV7670

$19.67 AUD, inc GST

More Views

VGA OV7670 Camera Module I2C 640X480
19.67 AUD

SKU: 018-DB-OV7670

$19.67 AUD, inc GST
1 reviews 0 5 4
75 units ship in 15 to 20 days (delivered by Wed, 28th of Dec)
Shipping Offer
OR

A VGA Camera Module designed to easily interface with microcontrollers. Lots of examples on the internet, Google "OV7670 Camera".

Overview:

  • High sensitivity for low-light operation.
  • Low operating voltage for embedded application.
  • Standard SCCB interface compatible with I2C interface.
  • Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output format.
  • Support VGA, CIF and from CIF to 40 x 30 format.
  • Vario Pixel method for sub-sampling.
  • Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
  • Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
  • ISP includes noise reduction and defect correction.
  • Support image scaling.
  • Lens shading correction.
  • Flicker 50/60Hz auto detection.
  • Color saturation level auto adjust.
  • Edge enhancement level auto adjust.
  • De-noise level auto adjust.

Features:

  • Photosensitive Array: 640 x 480.
  • IO Voltage: 2.5V to 3.0V.
  • Operating Power: 60mW/15fpsVGAYUV.
  • Sleeping Mode: <20μA.
  • Operating Temperature: -30 to 70 deg C.
  • Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
  • Lens Size: 1/6".
  • Vision Angle: 25 degree.
  • Max. Frame Rate: 30fps VGA.
  • Sensitivity: 1.3V / (Lux-sec).
  • Signal to Noise Ratio: 46 dB.
  • DynamicRange: 52 dB.
  • Browse Mode: By row.
  • Electronic Exposure: 1 to 510 row.
  • Pixel Coverage: 3.6μm x 3.6μm.
  • Duck Current: 12 mV/s at 60℃.
  • PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm.



This product is listed in:

 >
Documentation and Resources:

Product Comments

Documentation and Resources:

Customer Reviews

  1. Review by chappo - Excellent Value For Money
    Rating
    80

    This little module is well made and represents excellent value for money at the price. Core Electronics price is as good as I have found for this item!

    There is a variation of this model which includes a FIFO memory chip which is needed if interfacing to a microcontroller without DMA support. It is much more expensive, but might be worth Core Electronics making available too.

    One request for Core Electronics. This item is slightly misdescribed everywhere on the net. The I2C like interface is only for camera control. The camera image data is output over a parallel bus. Could you please add to the description appropriately.

    I would give five stars if not for the slightly inaccurate description. (Posted on 24/05/2013)
