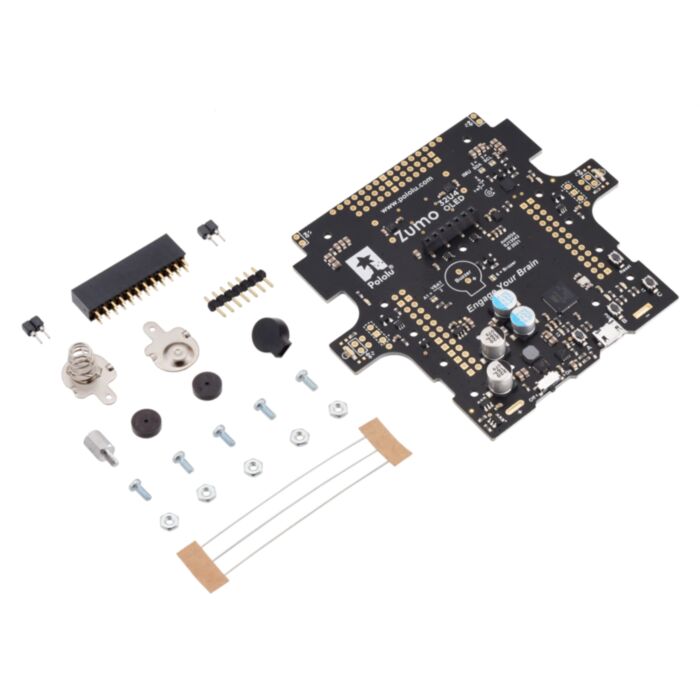

This is primarily intended as a replacement part, but it can also be used to make your own Zumo 32U4 OLED robot if you only want a subset of the parts included with Pololu's full kit. The Zumo 32U4 OLED Robot Kit consists of the following:
Two micro metal gearmotors and four AA batteries are also required to complete the Zumo 32U4 OLED robot.
This is the main board for the newer Zumo 32U4 OLED Robot with a graphical OLED display. For the original version of the main board designed to work with an LCD, see the Zumo 32U4 Main Board v1.1.
Dimensions
Size: | 3.7" × 3.26" |
---|---|
Weight: | 24 g1 |
General specifications
Processor: | ATmega32U4 @ 16 MHz |
---|---|
RAM size: | 2560 bytes |
Program memory size: | 32 Kbytes2 |
Motor driver: | DRV8838 |
Motor channels: | 2 |
Minimum operating voltage: | 2.7 V |
Maximum operating voltage: | 10 V |
Continuous output current per channel: | 1.8 A |
Logic voltage: | 5 V |
Reverse voltage protection?: | Y |
External programmer required?: | N |
Identifying markings
PCB dev codes: | zum02d |
---|---|
Other PCB markings: | 0J13542 |
Notes:
Documentation and other information
Pololu Zumo 32U4 Robot User’s Guide (Printable PDF)
User’s manual for the Pololu Zumo 32U4 robot.
File downloads
Dimension diagram of the Zumo 32U4 OLED Main Board (572k pdf)
3D model of the Zumo 32U4 OLED Main Board (24MB step)
Note: this model includes an Graphical OLED Display that is sold separately from the Zumo 32U4 OLED Main Board.
Drill guide for the Zumo 32U4 OLED Main Board (200k dxf)
This DXF drawing shows the locations of all of the board’s holes.
