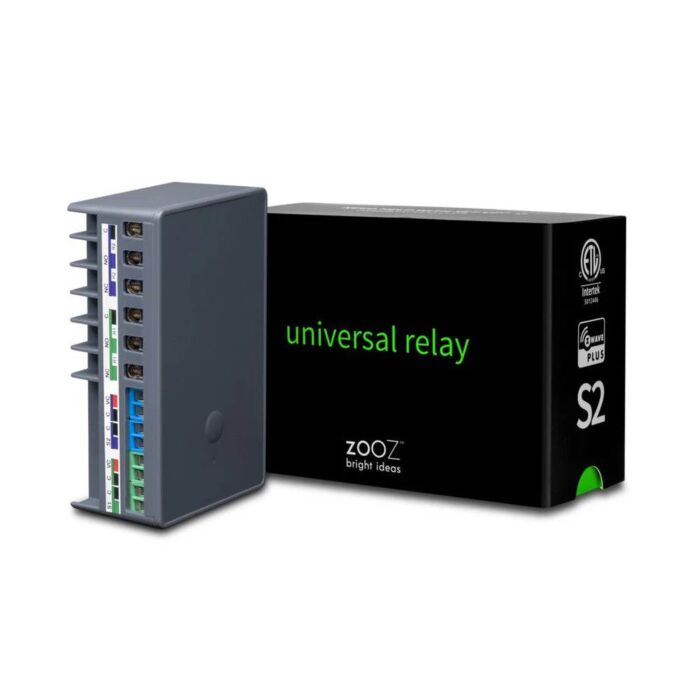

Zooz Z-Wave Universal Relay AU

SKU: CE10340

Z-Wave relay with two NO/NC outputs and dual dry-contact 12-24V inputs to control DC up/down motors, sprinklers and gates.

$70.41 AUD, inc GST

$70.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Make legacy gear smart. The Zooz ZEN17 Universal Relay (800 Series, Z-Wave) gives you two independent relays and two sensor inputs to bring pumps, gates, fans, blinds, sprinklers and more into your Z-Wave ecosystem.

Use it to pulse a garage door opener that is not locked to a cloud service, drive up/down DC motors, or monitor dry-contact and 12-24 V signals from HVAC or leak detectors.

Pair it with a 5 V 1 A USB-C supply for bench prototyping or wire it to 12-24 V AC/DC for permanent installs - sold seperately.

Technical Specifications

Relays	2 x configurable NO or NC mechanical relays
Inputs	2 x dry contact or 12-24 V inputs (use either mode per channel; never apply voltage to Sw terminals)
Max load	NO relays up to 20 A, NC relays up to 10 A
Radio	Z-Wave 800 chip with S2 security and SmartStart
Power	USB-C 5 V 1 A max or 12-24 V AC/DC (power supply not included)
Installation	Indoor use only; wall-mount ready; optional wall switches for manual control
Operating temperature	0 to 40 C
Dimensions	4 x 2.5 x 1.5 inches
Controller requirement	Z-Wave gateway controller required, sold separately

Power option: For USB-C power, use a small 5 V max 1 A adapter only. Do not use laptop, tablet or fast chargers. Get a compatible supply here.

Additional Resources

What’s Included

Zooz ZEN17 Universal Relay module (800 Series, Z-Wave)
