xTool S1 20W All-in-1 SafetyPro Bundle
Enclosed 20W diode laser for engraving and cutting; 498 x 330 mm work area, or with the included conveyor, up to 470 x 3000 mm for batch long-format jobs.
In stock, ships same business day if ordered before 2PM
Delivered by Wed, 14th of Jan
This equipment uses a laser and has the following restrictions:
- The equipment is not intended for sale to the general public
- The equipment is intended to be used in trades, professions or industries
- The domestic or international prototype/product this equipment is to be used in will comply with relevant laws
- The end-user of this equipment is licensed and trained to safely work with lasers
A declaration of use will need to be submitted during checkout.
Level up your workshop with a fully‑enclosed, Class 1 diode laser that pairs 20W cutting power with precision Pin‑point Positioning for fast, accurate results. The S1’s roomy 498 × 330 mm work area, 600 mm/s motion system, and included Automatic Conveyor Feeder unlock long‑format jobs up to 470 × 3000 mm - ideal for batch work and signage.
This bundle ships ready for wood, leather, acrylic, tumblers, and more - allowing for cutting, rotary, material passthrough, fume control, and clean‑cut quality in one package.
Features
- Power and precision: 20W diode module with a fine 0.08 × 0.06 mm spot for crisp engraving and clean vector cuts.
- Big projects, small footprint: 498 × 330 mm workspace; process materials up to 470 × 3000 mm with the included conveyor feeder.
- Pin‑point Positioning and autofocus: quick framing and hands‑free focus for fewer test runs and less waste.
- 3D Curve engraving support: consistent focus across curved objects for premium results on mugs, spoons, and more.
- Software compatibility: connect over USB or Wi‑Fi via LightBurn and xTool Creative Space and get straight to making.
Safety first
- Class 1 enclosed design with UL94‑V0 flame‑retardant cover and light‑filtering lid for comfortable viewing.
- Built‑in flame detection array with configurable alarms; integrates with xTool’s Fire Safety Set for automatic CO₂ discharge.
- Essential interlocks: lid‑open stop, keyed power control, and a dedicated emergency‑stop button.
- Pair with the included SafetyPro AP2 purifier to capture fumes and particulates for a cleaner workspace.
Cutting and engraving capability
- Typical one‑pass results (20W): up to 10 mm cherry/basswood; up to 8 mm dark opaque acrylic.
- Materials: wood, leather, paper, MDF, felt, coated/painted metals (engraving), dark opaque acrylic, stone/ceramic, and more. With the included 1064 nm IR head for bare metals and plastics.

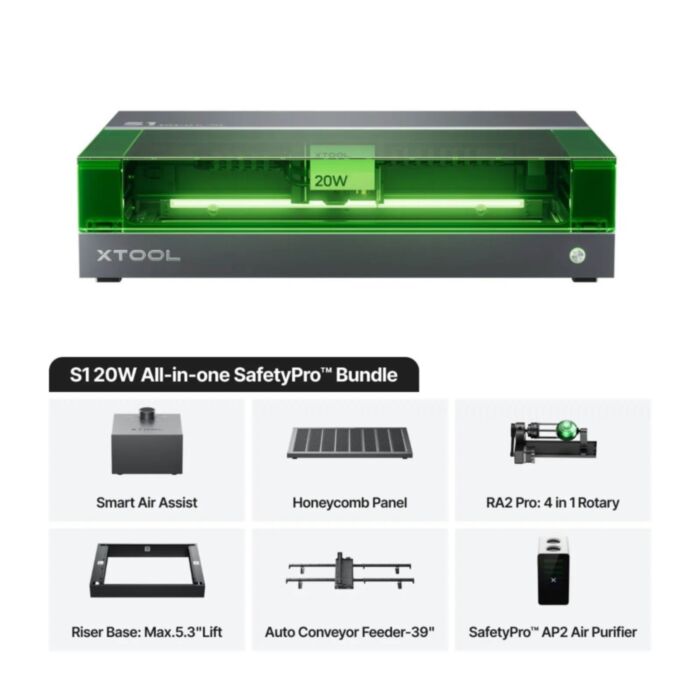

What’s in the box
- xTool S1 enclosed diode laser machine (20W)
- Smart Air Assist
- Honeycomb Panel
- Riser Base
- RA2 Pro 4‑in‑1 Rotary
- Automatic Conveyor Feeder (99cm)
- SafetyPro AP2 Air Purifier
Key specifications
- Work area: 498 × 330 mm; with conveyor: 470 × 3000 mm
- Max speed: up to 600 mm/s
- Machine size: 765 × 561 × 183 mm (without riser)
- Software: xTool Creative Space (XCS) and LightBurn; USB/Wi‑Fi connectivity
