XT-S1 ToF Single-Point Ranging LiDAR Sensor (0.3-30m)

Skip to the beginning of the images gallery

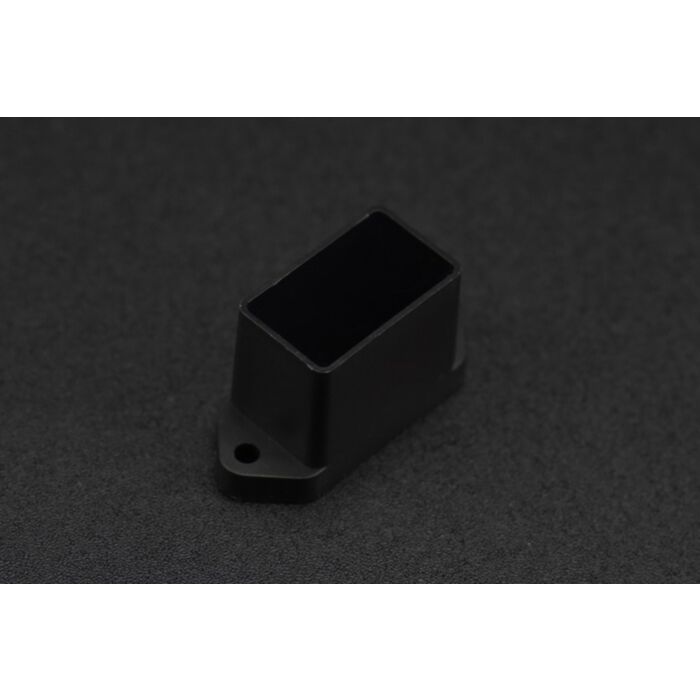

XT-S1 ToF Single-Point Ranging LiDAR Sensor (0.3-30m)

SKU: SEN0585 Brand: DFRobot

This is a single-point laser radar based on the Time of Flight (ToF) principle. It has a compact size and weighs only 9 grams, making it easy to install....

$99.75 AUD, inc GST

$90.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 24 and Jul 28

Quantity Discounts:

6+ $87.05 (exc GST)
12+ $84.34 (exc GST)

This is a compact single-point laser radar based on the Time-of-Flight (ToF) principle. With a lightweight design of only 9 grams, it is incredibly convenient to install. Thanks to its low power consumption, which is less than 0.5W, it is well-suited for battery-powered or low-power demanding scenarios.

Overview of XT-S1 ToF Single-Point Ranging LiDAR Sensor (0.3-30m)

This laser radar offers compatibility with both indoor and outdoor environments with intense lighting conditions of up to 100klux, enabling reliable operation in various bright settings. With a measurement range of up to 30 meters, it provides stable, precise, and highly sensitive distance measurements.

Size of XT-S1 ToF Single-Point Ranging LiDAR Sensor (0.3-30m)

The application potential of this laser radar is extensive. In the field of unmanned aerial vehicles (UAVs), it can be used for altitude control, ensuring the drone maintains a stable flying height. In robotics, it proves valuable for collision avoidance, helping robots detect and navigate around obstacles. In the realm of smart homes, it can be employed for environmental perception and tracking, enabling intelligent control of home devices based on human position and movement.

Note: Please don't directly look into the laser radar with your eyes while using it!

Features

Compact size

Lightweight

Measurement range of up to 30m indoors and outdoors

Applications

Altitude control

Collision avoidance

Smart homes

Applications of XT-S1 ToF Single-Point Ranging LiDAR Sensor (0.3-30m)

Specification

Measurement range: 0.3~30m (90% reflectivity indoors and outdoors)

Measurement accuracy: 30~250cm @ ±5cm, 250~3000cm @ ±2%cm

Operating voltage: 4.8~5.2V

Power consumption: <100mA @ 5V

Communication interfaces: UART/I2C/IO

Wavelength: 940nm

Resolution: 1cm

Measurement frequency: Maximum 50Hz

Ambient light immunity: 100klux

Emitter angle: Half-angle of 2°

Receiver angle: Half-angle of 1°

Operating temperature: 10°C~60°C

Storage temperature: -20°C~70°C

Weight: 9g

Documents

Product manual

Upper Computer Operator Manual

Upper Computer

Parts List

XT-S1 ToF Single-Point Ranging LiDAR Sensor(0.3-30m) x1

6-pin DuPont cable x1
