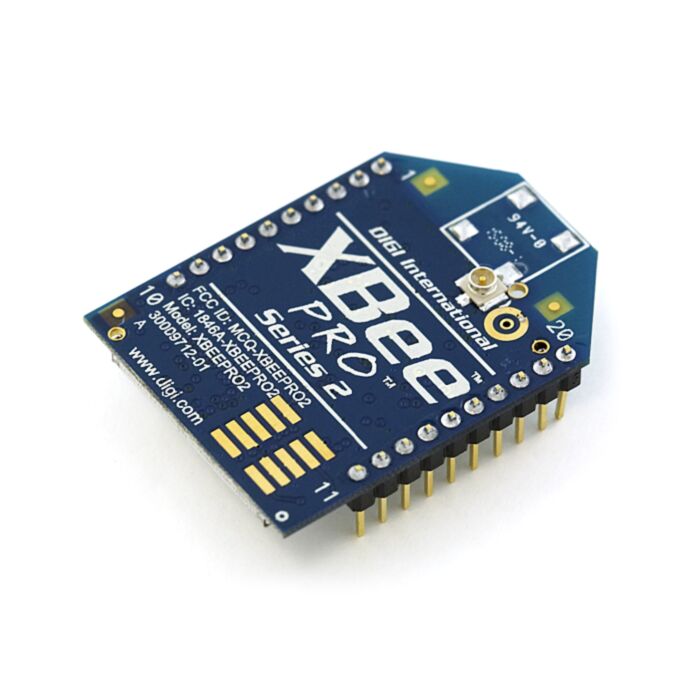

XBee Pro 50mW U.FL Connection - Series 2 (ZigBee Mesh)

SKU: WRL-10420 Brand: Sparkfun

Retired Product

Replaced by: WRL-13170

This product has been replaced by: WRL-13170
This product is no longer available. This page is only for reference.

This is the XBee XBP24-BZ7UIT-004 module from Digi. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

These are essentially the same hardware as the older Series 2.5, but have updated firmware. They will work with Series 2.5 modules if you update the firmware through X-CTU.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration. We highly recommend Building Wireless Sensor Networks as a guide for setting up mesh networks.

Note: Series 1 and Series 2 XBee modules have the same pin-out. However, Series 1 modules cannot communicate with Series 2 modules.

Note: If you are using these outside of the United States, please check with your local laws regarding radio communication.

Features:

3.3V @ 295mA
250kbps Max data rate
50mW output (+17dBm)
1 mile (1600m) range
Fully FCC certified
6 10-bit ADC input pins
8 digital IO pins
128-bit encryption
Local or over-air configuration
AT or API command set
External Antenna Required

Documents:

Replaces:WRL-08766
