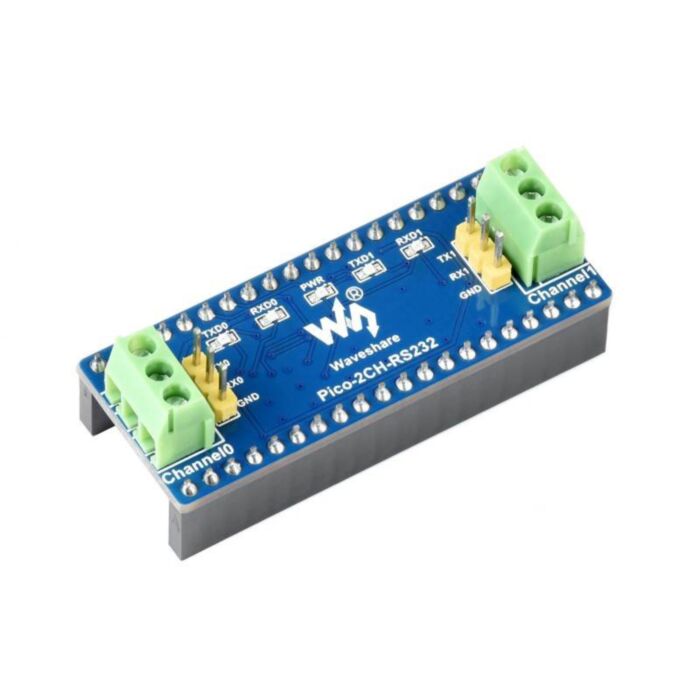

Waveshare RS232 HAT for Raspberry Pi Pico

SKU: WS-19979 Brand: Waveshare
A convenient 2-channel RS232 adapter for the Raspberry Pi Pico
$11.70 AUD, inc GST
$10.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $10.21 (exc GST)
  • 25+ $9.89 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

2-Channel RS232 Module For Pico, incorporating the RS232 Transceiver SP3232EEN, Using UART.

Specifications

  • Operating Voltage: 3.3V to 5V
  • RS232 Transceiver: SP3232EEN
  • Communication Method: UART
  • Baud Rate Range: 300 to 912600 bps

What's On Board



  1. SP3232 RS232 transceiver
  2. Raspberry Pi Pico header
  3. RS232 bus interface
    2-channel RS232 (DB9 male connector is also available through adapter cable)
  4. TVS diode
  5. ESD diode
  6. UART status indicators
    RXD0/TXD0: Channel 0 RX/TX indicators
    RXD1/TXD1: Channel 1 RX/TX indicators

Pinout



Dimensions
