Waveshare RP2040-Matrix Dev Board

SKU: WS-24594 Brand: Waveshare
Waveshare RP2040-Matrix Development Board, Onboard 5×5 RGB LED Matrix, Based On Official RP2040 Dual Core Processor...
$13.15 AUD, inc GST
$11.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 10-25 $11.47 (exc GST)
  • 25+ $11.12 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

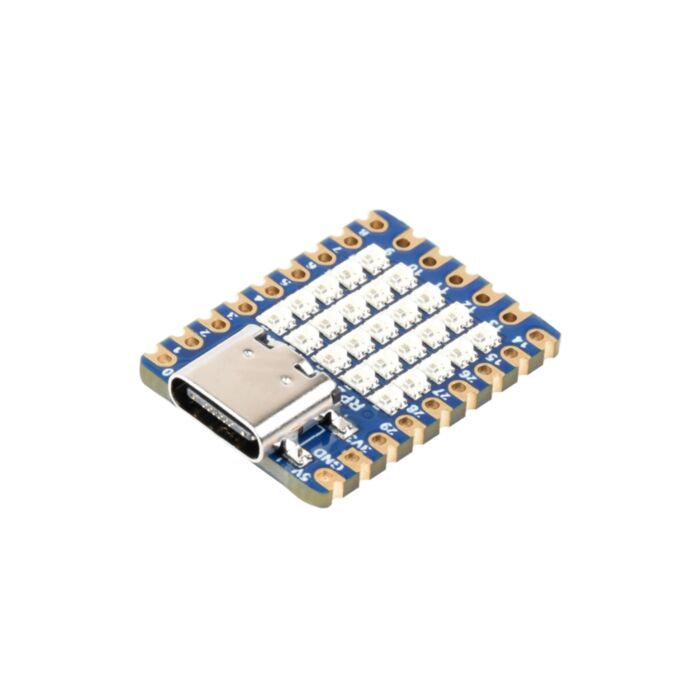

Waveshare RP2040-Matrix Development Board, Onboard 5×5 RGB LED Matrix, Based On Official RP2040 Dual Core Processor
RP2040 RGB LED Matrix Board

a Pico-like MCU board based on Raspberry Pi RP2040

Castellated module, suitable for SMD applications

Board specifications
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Onboard 5 × 5 RGB LED matrix for colorful lighting display
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Onboard 5×5 RGB LED Matrix

for colorful lighting display



Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

supports C/C++, MicroPython, Arduino

Comprehensive SDK, dev resources, tutorials to help you easily get started

20 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board
  1. USB Type-C connector
  2. 5×5 RGB LED Matrix
  3. BOOT button
    press it when resetting to enter download mode
  4. RESET button
  1. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  2. W25Q16JVUXIQ
    2MB NOR-Flash
  3. RP2040
    dual-core processor, up to 133MHz operating frequency
Product show
outline dimensions
Resources & Services

PRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCD
RP2350 chip

Raspberry Pi Pico 2
DC-DC, 800mAMicro USB4MB--
RP2040 chip

Raspberry Pi Pico W
DC-DC, 3000mAMicro USB2MB-with WIFI

Raspberry Pi Pico WH
DC-DC, 3000mAMicro USB2MB-with WIFI

Raspberry Pi Pico
DC-DC, 800mAMicro USB2MB--

Raspberry Pi Pico H
DC-DC, 800mAMicro USB2MB--

Type-A ver.
LDO, 500mAType-A4MB--

Mini ver.
LDO, 800mAType-C2MB--

Tiny ver.
LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC

RGB Matrix ver.
LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix

BLE ver.
LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC

ETH Port ver.
LDO, 500mAType-C4MB-with Ethernet port

0.99inch Round LCD with case ver.
LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case

1.28inch Round LCD ver.
LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD

1.28inch Round LCD with case ver.
LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case

1.28inch Round Touch LCD ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD

1.28inch Round Touch LCD with case ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case

1.69inch Touch LCD ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD

0.96 LCD ver.
DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD

Plus ver.
DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-

DVI port ver.
LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port

Cam & LCD ver.
-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD display

Weight: 0.002 kg

Quick Overview

RP2040-Matrix x1

RP2040-Matrix

This product is listed in:

Raspberry Pi>Pico>RP2 Based Boards
