Waveshare PCIe to 4-Channel Gigabit Ethernet Board (B) for Raspberry Pi 5

SKU: WS-33365 Brand: Waveshare

Add four wired network ports to your Pi 5 - ideal for routers, firewalls and multi-network projects.

$62.68 AUD, inc GST
$56.98 AUD, exc GST

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, supplier stock; your order will dispatch . And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

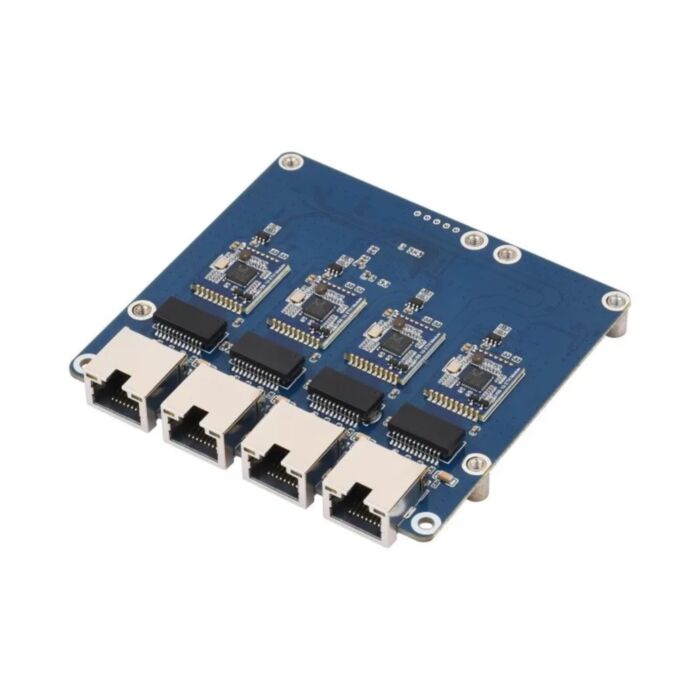

Four extra wired network ports, connected straight into a Raspberry Pi 5 with a single ribbon cable.

The Pi 5 ships with just one Ethernet port, which rules it out for routers, firewalls, VLANs, network taps and multi-WAN failover builds. This board connects to the Pi 5's 16-pin PCIe connector and adds four RJ45 Gigabit ports, drawing its power through the same PCIe cable so there's no extra supply to wire in.

Each port runs on a Realtek RTL8153 controller, which Raspberry Pi OS supports out of the box, so there are no drivers to hunt down. All four ports share the Pi 5's single-lane PCIe Gen2 link, so combined throughput is shared across the ports rather than 4 Gbps flat out on every port at once. That suits routing, segmentation and monitoring work well.

Getting started is quick:

  • Mount the board to the Pi 5 and connect the included 16-pin PCIe cable, minding the cable orientation.
  • Add dtparam=pciex1 to /boot/firmware/config.txt and reboot.
  • Run ifconfig to confirm the new interfaces are recognised.

Features

  • Turns a Pi 5 into a five-port network device, with four added 10/100/1000 Mbps RJ45 ports alongside the onboard Ethernet
  • Driver-free in Raspberry Pi OS, thanks to Realtek RTL8153 Gigabit controllers
  • Single-cable install, powered through the PCIe cable by default with no external supply needed
  • Mounting design that holds the Pi 5 securely in place
  • Per-port activity LEDs, with green solid for link and yellow flashing for activity

Specifications

Property Specification
Compatibility Raspberry Pi 5 only
Host interface PCIe x1 Gen2 via 16-pin FFC
Expansion chip VL805
Ethernet controller Realtek RTL8153
Ethernet ports 4x RJ45
Network standard 10/100/1000 Mbps
Power supply 5 V, via PCIe cable
Weight 65 g

Resources

What's Included

  • 1x PCIe to 4-Ch Gigabit ETH Board (B)
  • 1x 16-pin PCIe FFC cable (40 mm)
  • 1x screw pack

Raspberry Pi 5 not included.
