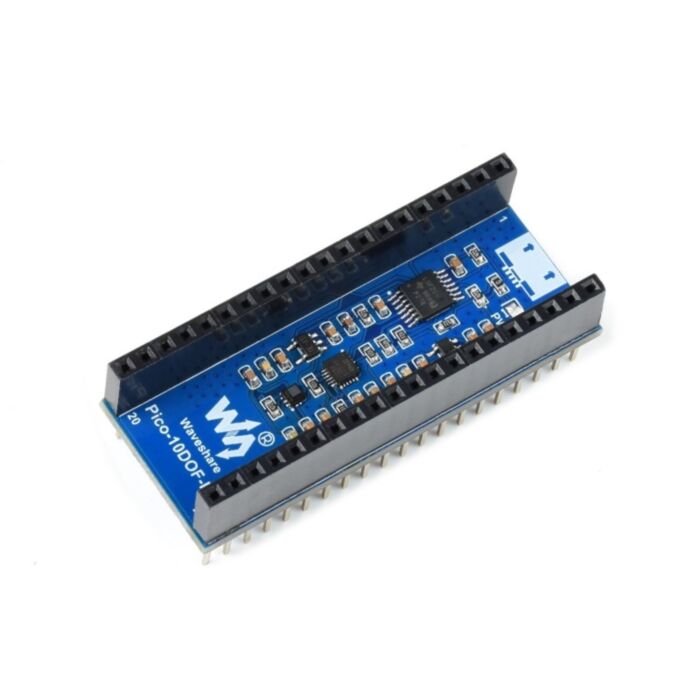

Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico (ICM20948 and LPS22HB)

SKU: WS-19358 Brand: Waveshare
The 10-DOF IMU Sensor Module Incorporates 9-Axis Motion Sensor ICM20948 And Baroceptor LPS22HB specialized for the Raspberry Pi Pico.
$29.50 AUD, inc GST
$26.82 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 03 and Dec 06

Quantity Discounts:

  • 10-25 $25.75 (exc GST)
  • 25+ $24.95 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Pico-10DOF-IMU is an IMU sensor expansion module specialised for Raspberry Pi Pico. It includes a gyroscope, accelerometer, magnetometer, baroceptor, and uses I2C bus for communication.

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data such as barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

Specifications

  • Operating Voltage:

    • 5V
  • Accelerometer:

    • Resolution: 16-bit
    • Measuring range (configurable): ±2g, ±4g, ±8g, ±16g
    • Operating current: 450µA
  • Gyroscope:

    • Resolution: 16-bit
    • Measuring range (configurable): ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec
    • Operating current: 3.2mA
  • Magnetometer:

    • Resolution: 14-bit
    • Measuring range: ±4900µT
    • Operating current: 280µA
  • Baroceptor:

    • Measuring range: 260 - 1260hPa
    • Measuring accuracy (ordinary temperature): ±0.025hPa
    • Measuring speed: 1Hz to 75Hz



What's On Board



  1. ICM20948 - 9-axis motion sensor, I2C bus

  2. LPS22HB - barometric pressure sensor, I2C bus

  3. RT9193-33 - 3.3V linear voltage regulator

  4. Power indicator

  5. Raspberry Pi Pico header - for attaching to Raspberry Pi Pico, stackable design

Pinout

Dimensions



Documents

This product is listed in:

Sensors>Weather>Barometric Pressure
Sensors>IMU
