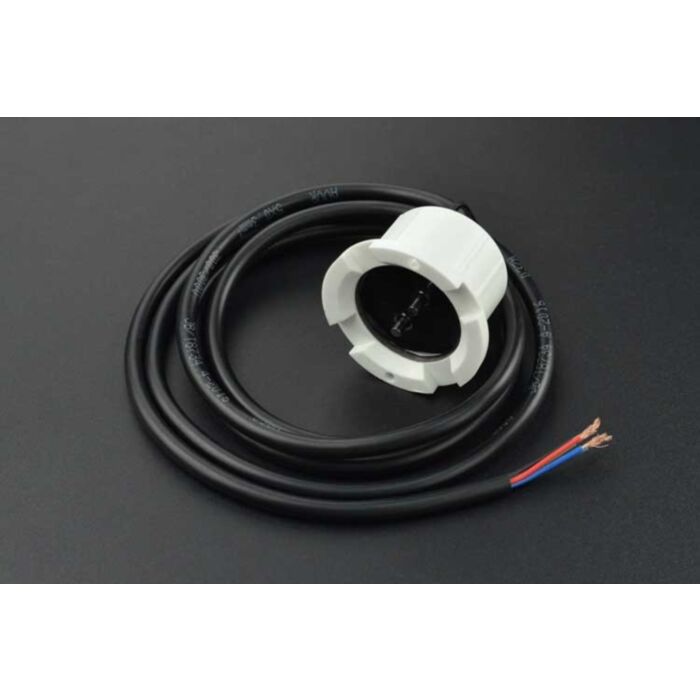

Water Leak Detector

SKU: SEN0454 Brand: DFRobot

Water leakage may cause some safety risks and monetary loss. Is there any device that can tell us whether there is water leakage in time so that we can take measures...

$37.15 AUD, inc GST

$33.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 02 and May 06

Quantity Discounts:

10+ $32.42 (exc GST)
25+ $31.41 (exc GST)

Water leakage can pose a range of safety risks and cause significant financial loss. However, there is a solution to help prevent potential damage. This innovative water leak sensor utilizes an integrated NO/NC design that can detect both water leakage and shortages. With a relay output signal, the built-in relay is triggered when the two probes detect water, causing the alarm system to activate or equipment to switch off.

Not only is this water leak detector incredibly sensitive, but it also boasts a low false alarm rate and has waterproof and dustproof protection with an IP66 rating to ensure safe and reliable use. Ideal for use in various settings such as kitchens, hotels, base stations, and even factory warehouses, this device offers unparalleled safety and peace of mind. Plus, with an energy-efficient design, this device won't pose any risks to combustible materials.

Specification

Process Medium: water
Output Signal: switch quantity output
Operating Current: <30mA
Operating Voltage: 7-18V
Response Time:<50ms
Operating Temperature: -10°C - 60°C
Protection Level: IP66
Size: 47mm/1.85” in diameter, 30mm/1.18” in height
Wiring:
- Red wire - power supply +
- Black wire - power supply -
- Blue wire - common
- Green wire - normally closed
- Yellow wire - normally open

Shipping List

Water Leak Detector x1
