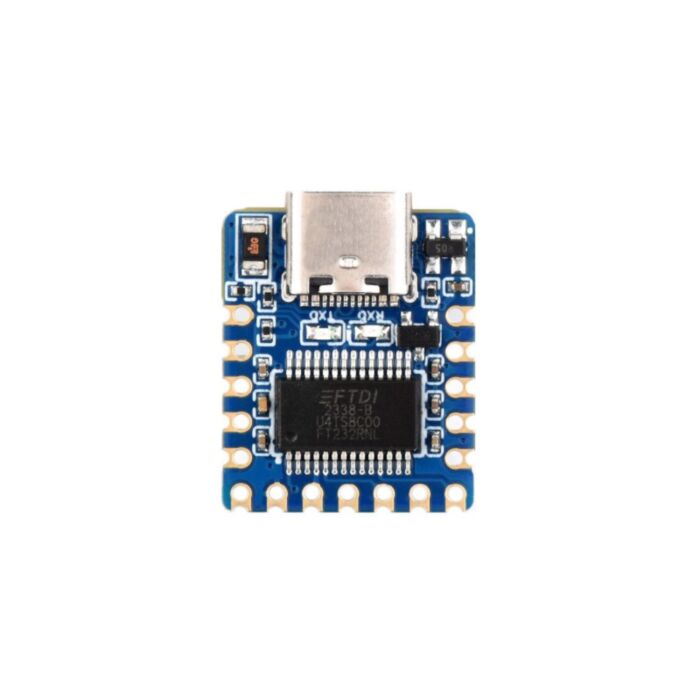

USB To UART Mini Communication Module (FT232)

SKU: WS-27466 Brand: Waveshare

USB To UART (TTL) Mini Communication Module, Compact Size, Stable Communication, Over-current/Over-voltage Protection, Multi Systems Support, TTL Serial...

$9.29 AUD, inc GST

$8.45 AUD, exc GST

Available with a lead time
Expect dispatch between May 26 and May 28

Ensure reliable serial communication across projects with the USB to UART (TTL) Mini Communication Module. Powered by the FT232RNL chip, this compact converter provides seamless USB to TTL serial interfacing, making it an essential tool for prototype development, embedded systems testing, and educational electronics experiments.

Specifications

Chipset: FT232RNL
Communication Baudrate: 300bps ~ 3Mbps
Default Voltage Level: 3.3V TTL (switchable to 5V via solder pad)
USB Interface: USB Type-C
Protection: Self-recovery fuse and ESD diode for over-current and over-voltage protection
Status Indicators: TXD and RXD LEDs
Pinout: 5V, GND, VCC, TXD, RXD, RTS, CTS
System Compatibility: Windows 7/8/8.1/10/11, MacOS, Linux, Android

How to Use

The USB-TO-TTL-FT232 module connects via a USB Type-C cable to a PC or embedded host. The castellated hole design allows direct soldering onto other PCBs for permanent integration. By default, the module operates at 3.3V TTL logic. For applications requiring 5V logic, re-solder the VCC pads on the back to switch voltage levels.

Connect the TXD and RXD lines to your microcontroller’s RX and TX pins respectively. Additional control lines such as RTS and CTS are available for flow control if needed. TXD and RXD LEDs visually indicate data transmission activity, aiding debugging and monitoring.

Compatibility

This module is compatible with a wide range of systems and development platforms:

Windows 7, 8, 8.1, 10, 11
MacOS
Linux distributions (e.g., Ubuntu, Debian, Raspberry Pi OS)
Android (with USB OTG)

Resources

Wiki: www.waveshare.com/wiki/USB-TO-TTL-FT232
