USB Type-C Plug Breakout - USB 3.0

SKU: CE08095 Brand: Pimoroni
This plug and breakout board provides an easy way to extract signals and power when plugged into a USB Type-C Receptacle. By default, the CC pin is...
$5.83 AUD, inc GST
$5.30 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 8th of Oct

Quantity Discounts:

  • 10+ $5.22 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

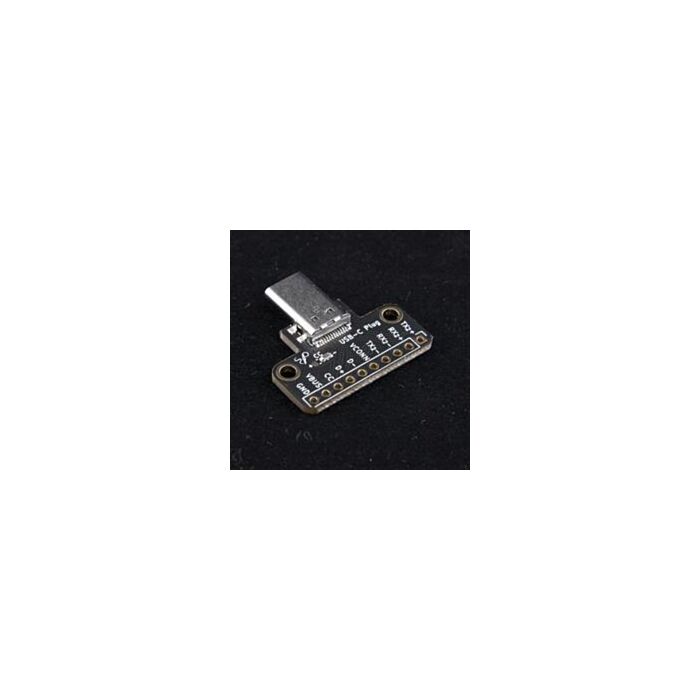

This plug and breakout board provides an easy way to extract signals and power when plugged into a USB Type-C Receptacle.

By default, the CC pin is connected via a 5.1K resistor to GND (-), meaning the plug identifies as a downstream port, and the upstream port will provide up to 1.5A at 5V. You can replace or move the resistor to pull the CC pin to VBUS (+) or change the pull value.

The 3.0 variant of the breakout board contains only two SuperSpeed differential pairs (RX2+/- and TX2+/-), meaning only single-lane mode is available.

As per the USB Type-C specification, the plug has only one pair of D+/D- pins; it’s up to the Receptacle it's plugged into to connect them together or use a mux for more advanced scenarios. Similar with CC and VCONN pins. The SBU pins are not available.

For more details about USB Type-C, check out this application note or the USB Type-C Specification.

Downloads

Datasheets

CAD Files

Hardware Files

  • You can find KiCad hardware source files for the boards on Github.

Schematics

Licence Information

The USB Type-C Plug Breakout hardware designs are licensed under the CERN Open Hardware Licence.

This documentation is licensed under the Creative Commons Attribution-ShareAlike License.
