USB Mini-B Breakout Board

Rating:

100% of 100

SKU: ADA1764 Brand: Adafruit

Simple but effective - this breakout board has a USB Mini-B connector, with all 5 pins broken out. Great for pairing with a microcontroller with USB support, or...

$3.95 AUD, inc GST

$3.59 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $3.45 (exc GST)
25+ $3.34 (exc GST)

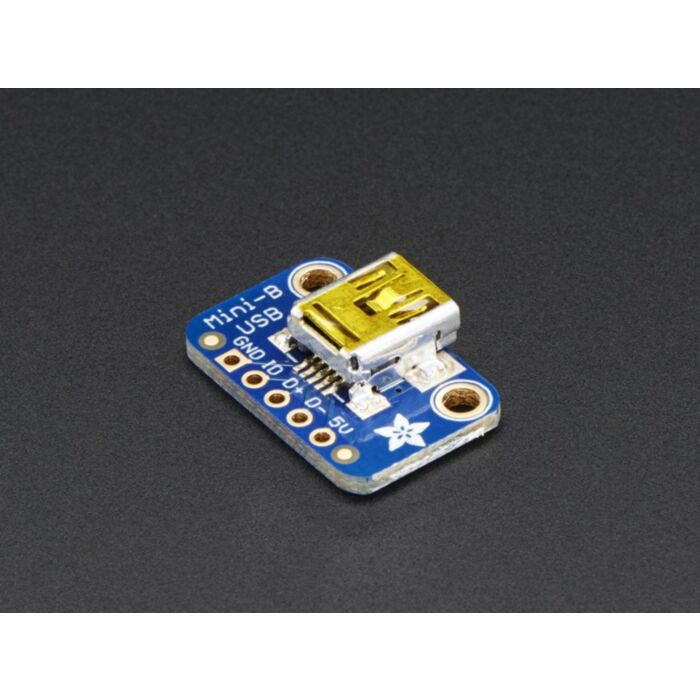

Simple but effective - this breakout board has a USB Mini-B connector, with all 5 pins broken out. Great for pairing with a microcontroller with USB support, or adding USB 5V power to a project.

Comes with one fully assembled and tested mini B breakout PCB and a small stick of 0.1" header so you can solder it on and plug into a breadboard.

Technical Details

Dimensions (without 0.1" header or terminal blocks):

Length: 21mm/0.8"
Width: 13mm/0.5"
Height: 2mm/0.1"
Weight: 1.6g

Mini B connector Datasheet

Fritzing object in the Adafruit Fritzing library

EagleCAD PCB files in GitHub

This product is listed in:

Connectors & Sockets>USB
