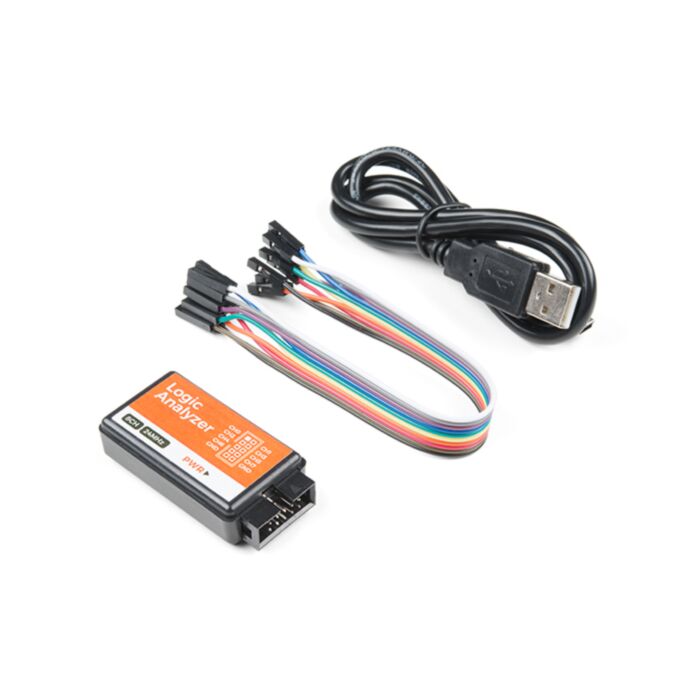

USB Logic Analyzer - 25MHz/8-Channel

SKU: TOL-15033 Brand: Sparkfun

Retired Product

Replaced by: TOL-18627
This product has been replaced by: TOL-18627
This product is no longer available. This page is only for reference.

Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART’s mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included mini-B USB cable. This logic analyzer works with sigrok – an open-source, cross-platform signal analysis software suite.

The analyzer ships with Female-To-Female jumper wires. If you’re using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.

You can also pickup a Bus Pirate Probe Set if you want to have even easier access to probes for prototyping.

Includes

  • 24MHz/8-Channel USB Logic Analyzer
  • 10-conductor Female-to-Male Jumper Wires
  • Mini-B USB Cable

Features

  • 8-channels
  • Sampling rate up to 24MHz, configurable down to 20kHz
  • 5.25V maximum voltage input
    • 2.0V minimum logic-high
    • 0.8V maximum logic-low
  • Input impedance > 100kΩ, 5pF
  • USB power supply
  • Supports open-source sigrok logic analyzer software
  • Cross-platform support: Windows, Mac OS X, Linux, Android, etc.
  • Dimensions: 54.7 x 27.4 x 14.1 mm
