USB C Round Panel Mount Extension Cable - 30cm

Rating:

100% of 100

SKU: ADA4218 Brand: Adafruit

If you need to add a panel-mount connection but don't have the time or ability to cut a custom oval or square hole, this USB C Round Panel Mount Extension Cable...

$27.90 AUD, inc GST

$25.36 AUD, exc GST

Available with a lead time
Expect dispatch between May 09 and May 13

Quantity Discounts:

10-25 $24.35 (exc GST)
25+ $23.59 (exc GST)

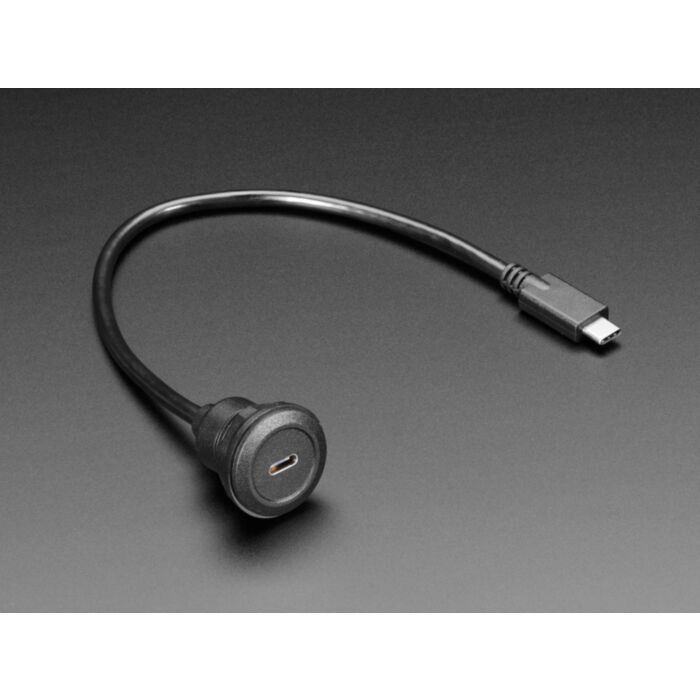

If you need to add a panel-mount connection but don't have the time or ability to cut a custom oval or square hole, this USB C Round Panel Mount Extension Cable is the easiest and fastest way to panel-ify your project. The adapter is about 30mm in diameter, so you can drill a hole in your wood, plastic or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Ta-da! Now you have a USB C jack and USB C plug for connecting any cable.

It's designed to easily attach to a panel up to 16mm thick (or 0.625"), or as thin as a few mm. Perfect for adding a USB C port to your project enclosure! Adafruit like this plug in particular for its solid body and 'forgiving' plastic lip that hides the drill hole.

Technical Details

Length: 300mm
Mounting Diameter: 30mm
Internal Diameter: 20mm
Diagram

Drilling Info:

Overall diameter (including screw nut): ~29.5mm
Minimum drill diameter: 21.5mm
Maximum drill diameter: up to 27mm

This product is listed in:

Cables>USB
Cables>USB>USB-C
