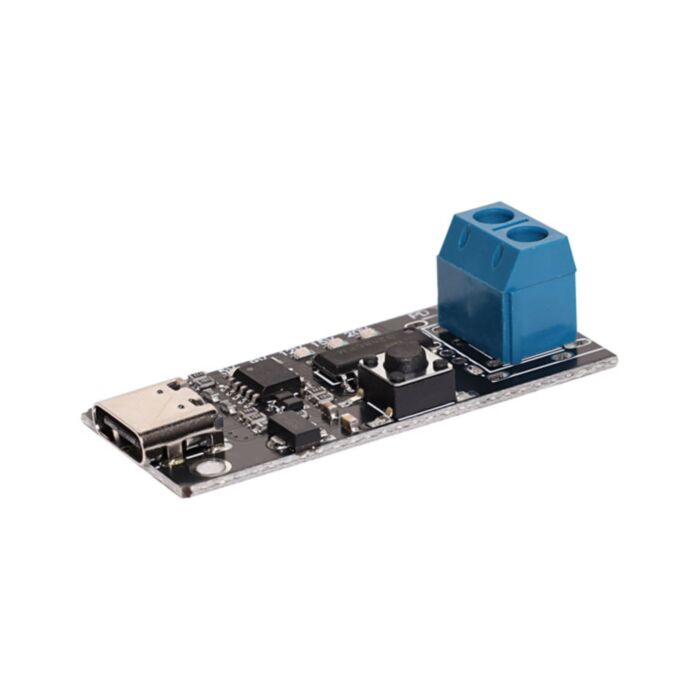

USB-C Power Delivery Trigger Board (Selectable voltage)

Tired of needing a different regulator or plug pack for every single project? This board gives you selectable voltages through USB-C PD!

$7.10 AUD, inc GST

$6.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Nov

Need a simple way to power your project with a USB-C supply? This tiny board lets you negotiate common USB Power Delivery (PD) or QuickCharge (QC) voltages and feed them straight into your circuit. No messing around with custom cables or adapters -just plug in a USB-C PD/QC power source, select your output voltage (5V, 9V, 12V, 15V, or 20V), and you’re good to go!

The onboard button cycles through available voltages, with an LED indicator showing the selection. Better yet, the module remembers your last voltage setting even after power is removed. A handy screw terminal block provides an easy way to connect power directly to your project.

Whether you’re prototyping, testing USB power supplies, or building a project powered off a single USB-C cable, this board is a super convenient tool to keep in your kit. Just make sure your device is rated for the voltage you select!

Features

Selectable USB PD or QC3.0 output voltage (5V, 9V, 12V, 15V, or 20V – depending on the connected power supply)
Acts as a USB-C "bridge" to cleanly negociate and power your project
Onboard button for voltage selection with LED readout
5A max current output (up to 100W with E-Marker cable)
Remembers last voltage setting when powered off
Automatic detection of supported voltage profiles (5V–20V with E-Marker)
Supports PD3.0, PD2.0, QC, FCP, and AFC standards
Key lock function to avoid accidental mis-selection
Screw terminals for easy connection to your project
Board dimensions: 18x42mm

Note: No voltage boost onboard, make sure your supply allows for the voltage you want
