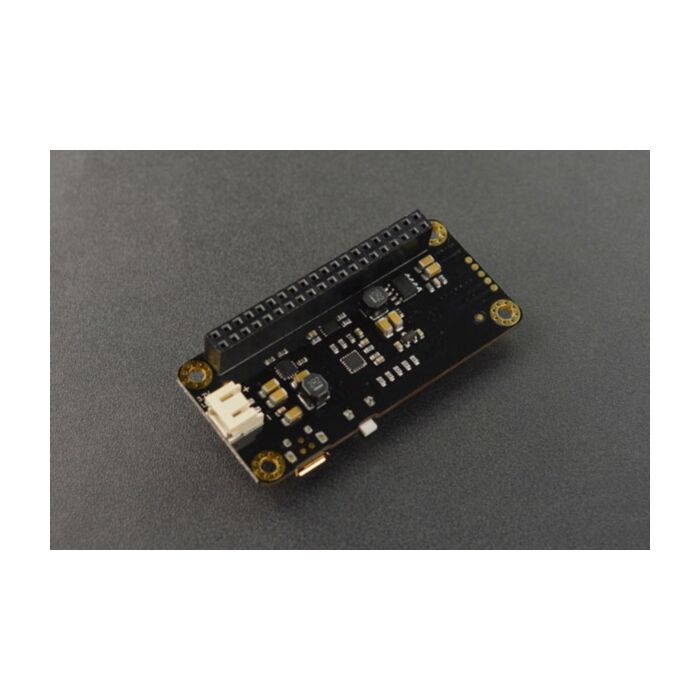

UPS HAT for Raspberry Pi Zero

Rating:
100% of 100
SKU: DFR0528 Brand: DFRobot
DFRobot UPS HAT is an uninterruptable power supply shield designed for the Raspberry Pi Zero series, and also compatible with Pi 2/3/A+. The UPS HAT can continue...
$36.21 AUD, inc GST
$32.92 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10+ $32.43 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

DFRobot UPS HAT is an uninterruptable power supply shield designed for the Raspberry Pi Zero series, and also compatible with Pi 2/3/A+. The UPS HAT can continue to provide power to the Raspberry Pi for a certain period of time when the system is powered off, by which to avoid system damage and assure safe shut down. In addition, the product can be used to supply power for applications requiring mobility such as Raspberry Pi camera, tablet PC, field data collection system.

Features

  • Standard Raspberry Pi extension ports for connecting other expansion boards.
  • 2A maximum current output for supporting more Raspberry Pi applications.
  • Auto switching of charge/recharge path, designed to be against power-down.
  • On-board 5 LEDs for showing the batteries’ status
  • On-board Maxim fuel gauge IC
  • Support reading battery information via I2C
  • Lithium battery charge/discharge protection and over-heating protection
  • Anti-backflow mainboard power source

Specification

  • Supply Voltage: 4.5~5.5V

  • Supply Current: (recommend using the adapter with the power of 2A and above)

  • Power Supply Interface: Micro-USB

  • Maximum Charge Current: 1.6A

  • Battery Port: PH2.0-2P or solderable contact

  • Battery: 3.7 Lithium Battery

  • Output Voltage: 5V

  • Maximum Output Current: 2A

  • Communication Interface: I2C

  • Dimension: 65x30mm/2.56x1.18”

  • Mounting Hole Size: 58x23mm/2.83x0.91”

  • Operating Temperature: -40℃~85℃

Documents

Shipping List

  • UPS HAT for Raspberry Pi Zero x1
  • Double-pass Copper Pillar M2.5*14 x4
  • Single Head Copper Pillar M2.5*4 x4
  • Screw M2.5*6 x4
