UPS Expansion HAT for LattePanda Sigma Single Board Computer
Available with a lead time
Expect dispatch between Apr 09 and Apr 14
Introduction

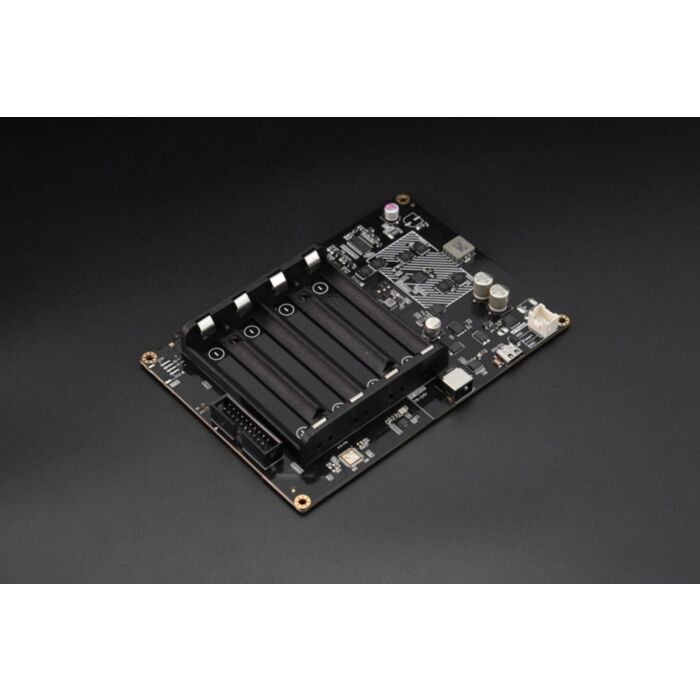

The LattePanda Sigma UPS is a robust and flexible power backup solution tailored for the LattePanda Sigma x86 Windows / Linux Single Board Computer Server. Utilizing four 18650 lithium-ion batteries as storage cells, it ensures uninterrupted power delivery even during sudden power outages. This UPS supports dual power input interfaces: Type-C PD (20V, 100W) and 5.5×2.5mm DC Jack (19-24V, =90W), providing flexibility for various power setups. Its compact design and advanced power management capabilities make it ideal for critical applications requiring stability, such as IoT systems, edge computing, and robotics.
Automatic Power Switching with HID-UPS Protocol
The UPS automatically transitions to battery power when external power is interrupted, safeguarding the LattePanda Sigma from damage due to sudden outages. With HID-UPS protocol support, the module is recognized as a battery device by operating systems, enabling system power management features such as power-saving modes and automatic shutdown. This functionality mirrors the behavior of a laptop's internal battery and enhances operational efficiency in power-sensitive environments.
Open-Source Arduino Integration for Customization
The UPS incorporates the HID-UPS protocol through Arduino, with fully open-source code. This enables users to develop customized battery management algorithms, optimize energy utilization, and set charging voltage limits to prolong battery life.
Energy-Efficient Direct Battery Power
Unlike conventional UPS systems, the LattePanda Sigma UPS directly powers the LattePanda Sigma through its four 18650 batteries, eliminating energy losses caused by boost or buck circuits. This efficient design maximizes battery life, providing up to 8 hours of continuous operation under typical conditions. It ensures reliable performance during extended outages, making it ideal for applications requiring sustained uptime.
Figure: Install the 18650 lithium battery into the the LattePanda Sigma development board
Figure: Mounting the UPS to the LattePanda Sigma Single Board Computer
Specification
USB Type-C PD protocol
Voltage requirement: 20V
Power requirement: 100W
DC Jack 5.5×2.5mm
Voltage requirement: 19~24V
Power requirement: =90W
Documents
Parts List
M3×30 Single-head Copper Pillar ×4
M3×6 Screws ×5
M3 Nuts ×5
