EdgeS3 [D] Re-usable Dev Board

SKU: CE10239 Brand: Unexpected Maker

A compact ESP32-S3 module suited for a side-entry M.2 connector for re-usable carrier boards - great for prototyping.

$34.01 AUD, inc GST
$30.92 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Dec

- +

19 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Meet EdgeS3[D], a compact modular and re-usable ESP32-S3 module that lets you pick the perfect radio setup for every build. Switch between the onboard high-gain antenna and an external 2.4GHz antenna over u.FL in firmware, then get back to prototyping.

Ideal for battery-powered IoT nodes and dense embedded designs, EdgeS3[D] blends dual-core processing, ultra low deep sleep current, and an M.2 B-Key edge connector to drop straight into carrier boards with clean, reliable I/O.

Technical Specifications

MCUESP32-S3 with dual 32-bit Xtensa LX7 cores up to 240 MHz
Co-processorRISC-V ultra low power co-processor
Wireless2.4GHz WiFi 802.11b/g/n
BluetoothBluetooth 5 with BLE and Mesh
Flash8MB QSPI
PSRAM2MB QSPI PSRAM (current version). Note: an 8MB OPI PSRAM version may follow depending on silicon availability.
USBNative USB plus USB Serial JTAG
Power regulation700mA 3.3V LDO regulator
BatteryLiPo charging with I2C battery fuel gauge
Deep sleepUltra low deep sleep current
Antenna optionsOnboard 3D high gain antenna and u.FL connector for external antenna
Antenna switchingRF switch controlled from code; onboard antenna selected by default
GPIO29 GPIO plus 8 additional via IO expander
Edge connectorM.2 B-Key edge connector
Connector detailsAmphenol MDT275B03001 side-entry B-Key, 2.75 mm height, module sits 1 mm off carrier PCB
Form factorBoard dimensions 22 x 23 mm
Max thickness2 mm at u.FL connector
Compatibility noteNot compatible with a computer M.2 slot

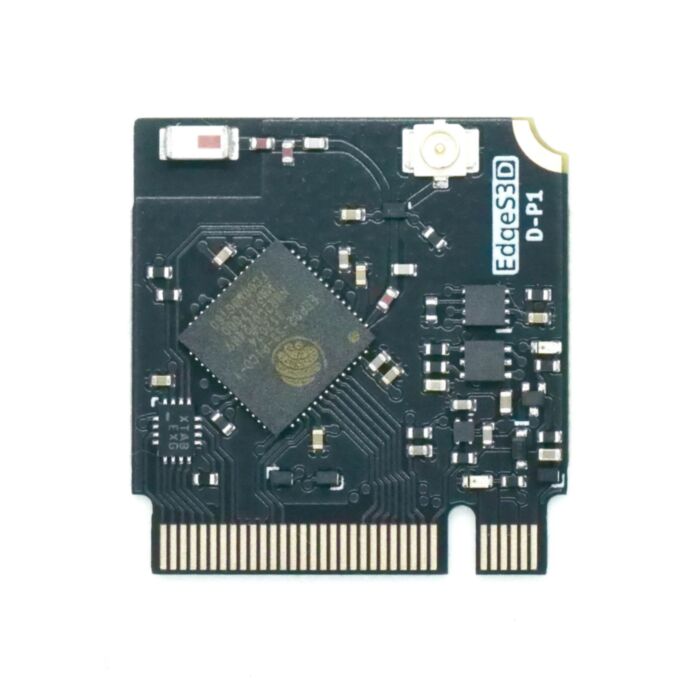

EdgeS3D showing onboard antenna, u.FL, and key features

Amphenol MDT275B03001 M.2 B-Key side-entry connector

Additional Resources

What’s Included

  • EdgeS3[D] module in an antistatic bag
  • Colour pinout card
  • Optional M.2 B-Key connector
  • Optional external 2.4GHz antenna
