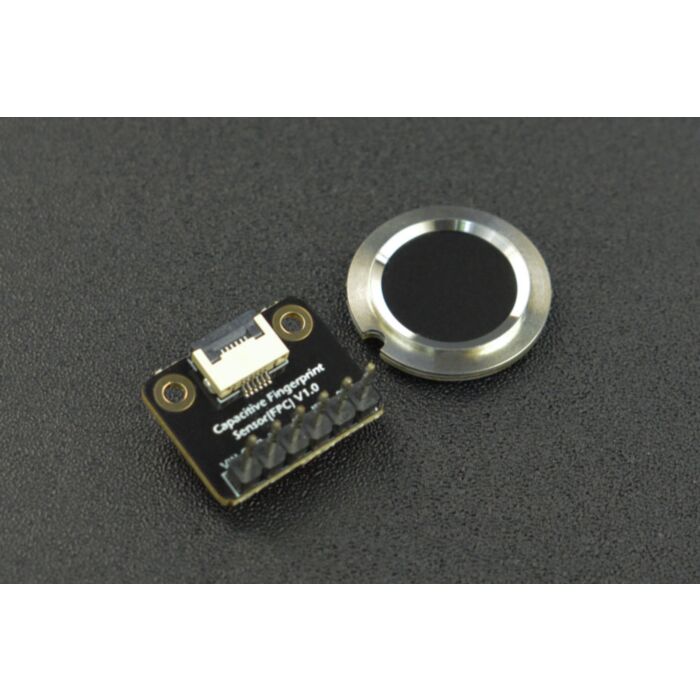

UART Capacitive Fingerprint Sensor (FPC Connector)

SKU: SEN0542 Brand: DFRobot

This Capacitive Fingerprint Sensor supports 360-degree any view object recognition and deep self-learning, and it features low power consumption but high...

$42.55 AUD, inc GST

$38.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 27 and Jan 30

Quantity Discounts:

10-25 $37.52 (exc GST)
25+ $36.75 (exc GST)

This fully integrated capacitive fingerprint sensor provides an efficient way for users to capture, process, store, and match fingerprints. Based on high-performance processor & semiconductor fingerprint sensor, it's equipped with built-in IDfinger6.0 fingerprint algorithm that enables it to complete fingerprint recognition independently. And when working with DFRobot Arduino library, the sensor can realize functions like fingerprint entry, deletion, and matching through UART. Also, upper computer software is provided to help users easily operate it.

This low-power sensor comes with a compact size and delicate appearance and offers fast recognition and high security. Moreover, it supports 360-degree view object recognition and deep self-learning.

Board Overview

Features

360-degree fingerprint entry and matching

Self-learning function

Compact size, easy to install

Applications

Fingerprint door lock

Drawer Lock

ID Recognition

Authorization

Specification

Operating Voltage: 3.3V

Operating Current: <40mA

Communication Method: UART

Storage Capacity: 80 fingerprints

1: N Verification Time: <0.5S

Pixel Resolution: 508dpi

Number of Pixels: 160x160

Operating Environment: -10 to 60°C / 20% to 80%RH

Dimension: diameter of 19mm/0.75"

Documents

Product wiki

CAD

Parts List

UART Capacitive Fingerprint Sensor (FPC Connector) × 1

0.5mm-6Pin FPC Cable × 1

FPC-Pin Header Adapter × 1
