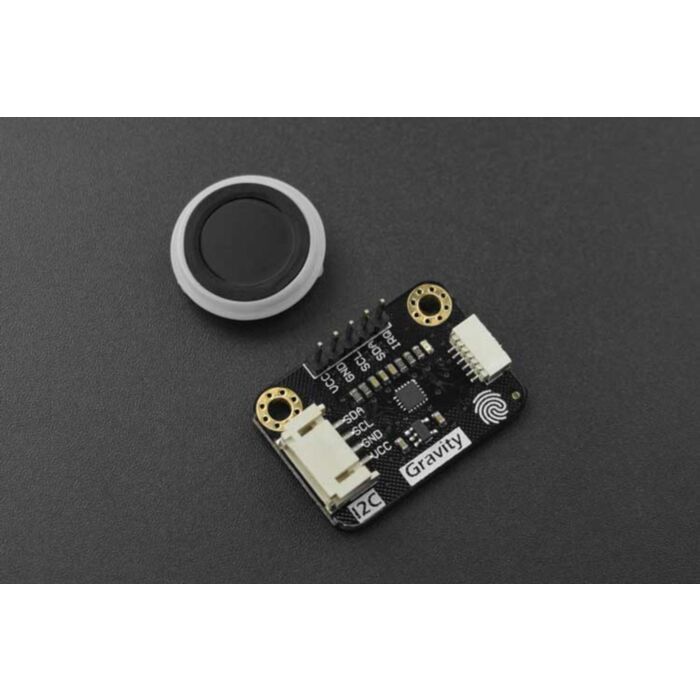

Gravity:Capacitive Fingerprint Sensor

SKU: SEN0359 Brand: DFRobot

This is a capacitive fingerprint sensor with fingerprint collecting, processing, storing, and comparison integrated all-in-one. Taking ID809 high-performance processor...

$42.55 AUD, inc GST

$38.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 30 and Feb 03

Quantity Discounts:

10-25 $37.52 (exc GST)
25+ $36.75 (exc GST)

This is a capacitive fingerprint sensor with fingerprint collecting, processing, storing, and comparison integrated all-in-one. Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor is equipped with built-in IDfinger6.0 fingerprint algorithms that enable it to complete all the fingerprint recognition independently. When working with our Arduino Library, the module is able to realize functions like fingerprint registration, fingerprint deletion, etc. Also, we offer upper computer software to help users conveniently operate this sensor.

This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.

Compared with SEN0348 Capacitive Fingerprint Sensor/Scanner, this module adopts Gravity interfaces that make it easier to connect. In addition, it is 3.3V and 5V compliant and supports I2C communication, which is very suitable for working with controllers like UNO, micro: bit, and so on.

Features

360-degree fingerprint entry and matching
Self-learning function
CNC metal ring, plus aperture

Applications

Fingerprint door-lock
Drawer Lock
Identity Recognition
Authorization

Specification

Operating Voltage: 3.3V-5V
Operating Current: <60mA
Communication: I2C
Storage Capacity: 80 fingerprints
1:1 verification time: 300~400ms
Pixel Resolution: 508dpi
Number of Pixels: 160x160
Fingerprint Detection Area: 8.0mm x 8.0mm
Working Environment: -40-60°C
Dimension: diameter 21mm/height 5mm
Adapter Dimension: 22.5*32mm/0.89*1.26”

Documents

Product wiki

Parts List

Gravity: Capacitive Fingerprint Scanner/Sensor x1
Adapter x1
SH1.0 6P Wire x1
Gravity-4P I2C/UART Sensor Cable x1

This product is listed in:

Sensors>Biometric
