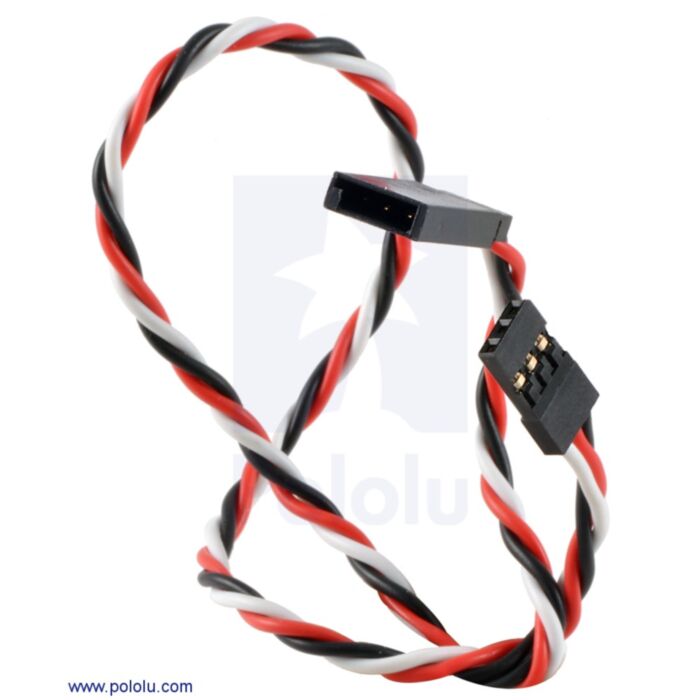

Twisted Servo Extension Cable 12" Male - Female

SKU: POLOLU-2169 Brand: Pololu

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

This servo extension cable has three 22-AWG wires joining a male Futaba J connector and a female JR connector. Since a female JR connector can be plugged into a male Futaba J connector, each end of the cable is compatible with both Futaba and JR-style connections; this cable will work as an extension cable in either system or as an adapter between systems, and it is compatible with almost all of the RC servos Pololu sell (you can assume Pololu's servos have female JR connectors unless the servo’s product page specifically says otherwise). The connectors have gold-flashed contacts on a 0.1" spacing, and each wire is comprised of 60 strands, making this cable more flexible than standard servo cables.

Note: The cable’s female connector is the same as what is found on most generic servos and fits nicely with 0.1" male headers, but is often referred to as “male” in the RC hobby industry. Likewise, the cable’s male connector is often referred to as “female” in the hobby industry because of the outer shroud, even though it internally consists of three male pins. The pictures below show the cable connectors labeled with Pololu's gender convention.

Male Futaba J connector (often referred to as “female” in the RC hobby industry).

Female “JR”-style connector commonly found on servo cables (often referred to as “male” in the RC hobby industry).

These male-to-female cables are available in two styles: flat, with wires stuck together side by side, and twisted, with wires twisted around each other to decrease electromagnetic interference (EMI). The twisted versions are especially soft and flexible. These cables are also available in two lengths: 12", and 24".

Servo extension cable 24" male – female.

Twisted servo extension cable 24" male – female.

Pololu also sell flat and twisted female-to-female servo extension cables.

Servo cable color convention

brown or black = ground (GND, battery negative terminal)
red = servo power (Vservo, battery positive terminal)
orange, yellow, white, or blue = servo control signal line

People often buy this product together with:

Micro Maestro 6-Channel USB Servo Controller (Assembled)

Female Crimp Pins for 0.1" Housings 100-Pack

Twisted Servo Extension Cable 12" Female - Female

Dimensions

Length:	12 in

General specifications

Gender:	Male-Female
Style:	twisted
