Toggle Clamp - Large Size - 201B

Rating:

100% of 100

SKU: ADA2457 Brand: Adafruit

*Ka-thunk* Pin down that PCB with Adafruit's Toggle Clamp, a sturdy and reliable way to quickly press and release with precision! A pogo-pin bed is a great way to connect...

$15.05 AUD, inc GST

$13.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 29 and Feb 03

Quantity Discounts:

10-25 $13.14 (exc GST)
25+ $12.73 (exc GST)

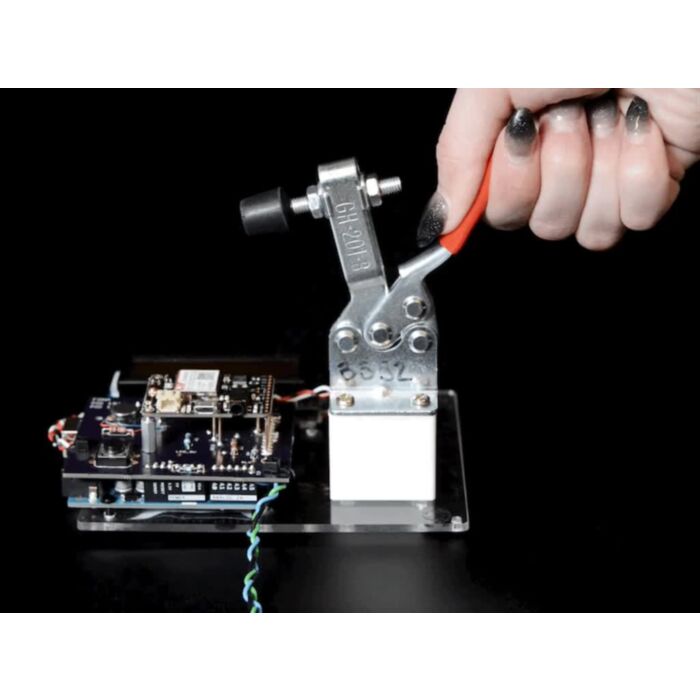

*Ka-thunk* Pin down that PCB with Adafruit's Toggle Clamp, a sturdy and reliable way to quickly press and release with precision! A pogo-pin bed is a great way to connect and test boards without any soldering, but you have to somehow get that PCB aligned right and evenly pressed down on each pogo. After much experimenting, Adafruit settled on this toggle clamp and we use it all the time in Adafruit's testing processes.

This beauty is strong enough to grip onto a PCB, but the rounded rubber tip ensures it won't mar or damage any circuits. You'll need to bolt it securely, then attach the rubber nub with the included hex nuts. The height of the nub can be adjusted, as can the location along the clamp.

Technical Details

Diagram
Weight: 0.3lbs
