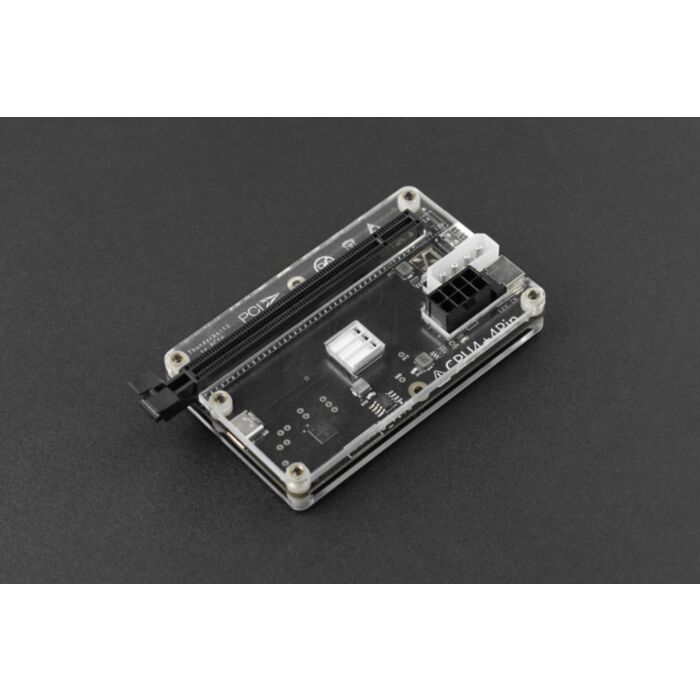

Thunderbolt PCIe x16 Graphics Cards Expansion Docking Station (Compatible with LattePanda Sigma)

SKU: DFR1169 Brand: DFRobot
Thunderbolt 4 PCIe x16 Graphics Card Expansion Dock features plug-and-play, high-speed. It supports Thunderbolt 3, Thunderbolt 4, and USB4 interfaces,...
Special Price $121.90 AUD, inc GST
Regular Price $157.82 AUD, inc GST
$110.82 AUD, exc GST
Special pricing ends 05 August 2024
* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 24 and May 27

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a cost-effective Thunderbolt to PCIe docking station specially prepared for LattePanda Sigma users. It is compact in size and has two Type-C interfaces and a PCIe x16 card slot on board. Equipped with the sixth-generation Intel Thunderbolt JHL6340 main control chip, it has excellent anti-interference performance and minimizes signal transmission loss. It is fully compatible with Thunderbolt 3, Thunderbolt 4, and USB4 interfaces. The transmission speed is up to 21.5Gbps, allowing you to enjoy smooth images and operations. The docking station does not require driver installation, plug and play, and can be easily paired with LattePanda Sigma or notebooks. It can be connected to high-performance graphics cards or various high-speed PCIe devices, greatlyimproving the performance of LattePanda Sigma, Laptops, and Desktops.

Interface diagram of Thunderbolt to PCIE docking station

Interfaces Diagram of Thunderbolt to PCIe docking station

The docking station comes with an acrylic shell that protects both front and back sides.It has a variety of power supply interfaces,including PD3.0 12V, CPU 4+4Pin, large 4Pin, and DC5.5*2.1. You can choose the appropriate power supply method according to your needs. This variety and flexibility makes docking stations ideal for a variety of situations.

Thunderbolt to PCIe docking station Overview

Thunderbolt to PCIe docking station Overview

Features

  • Speed bandwidth 21.5G/bps
  • Using JHL6340 chip, high compatibility
  • Fully compatible with USB4, Thunderbolt 3, Thunderbolt 4
  • Specification

    Type-C interface Specifications

  • Speed bandwidth: 21.5G/bps=2700MB/S=2.68GB/S
  • Supported interfaces: USB4, Thunderbolt 3, Thunderbolt 4
  • Power supply interface Specifications

  • PD3.0-12V (Max 60W)
  • DC5.5*2.1-12V (Max 120W)
  • CPU4+4Pin (chassis power interface)
  • Large 4Pin (chassis power interface)
  • PCIe interface Specifications

  • Card slot: PCIe x16
  • Speed bandwidth: PCIe 3.0 x4
  • Compatible systems: Windows10, Windows11, Linux, Mac Os
  • Support independent graphics cards: NVIDIA series, AMD series
  • Weight: 90g
  • Size: 100*62*17mm
  • Documents

  • Product wiki
  • Parts List

  • Convenient Thunderbolt to PCIe x16 Docking Station x1
  • ATX24Pin Short Connector x1
