Tamiya 70093 3-Speed Crank-Axle Gearbox Kit

SKU: POLOLU-67 Brand: Pololu

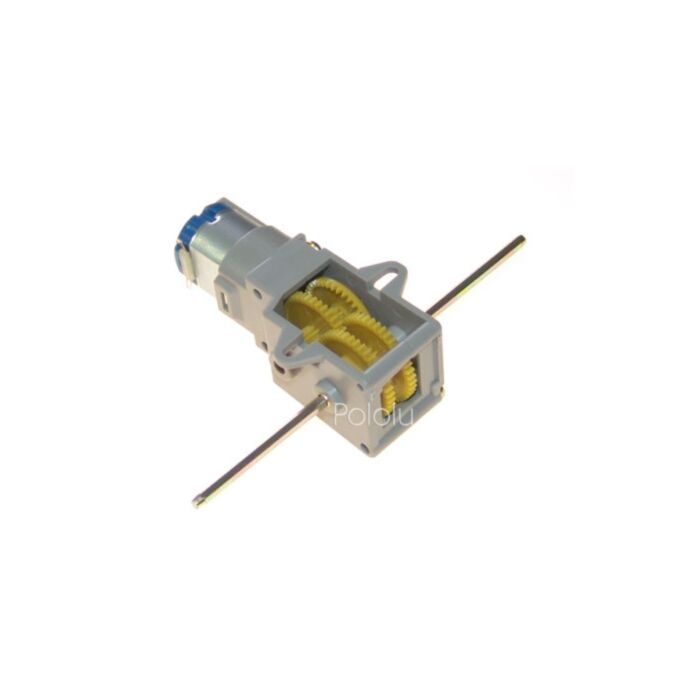

Tamiya’s 3-speed crank-axle gearbox looks very much like half of the twin-motor gearbox (with an added gear ratio option). This compact gearbox can be built in one of three gear ratios (17:1, 58:1, and 204:1), and is Tamiya’s cheapest, general-purpose gearbox.
$16.50 AUD, inc GST
$15.00 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 03 and Apr 08

Quantity Discounts:

  • 10-25 $14.55 (exc GST)
  • 25+ $14.25 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Overview

The Tamiya 3-speed crank-axle gearbox is essentially half of the twin-motor gearbox. The kit comes with enough parts so you can built the gearbox in any of three gear ratios (17:1, 58:1, and 204:1).

Color options

Complementary products

The output shafts included in this kit are 3 mm hexagonal axles that are 10 cm (about four inches) from tip to tip. The axles work with any of the Tamiya wheels Pololu carry, giving you many options for your robot speed. The low-voltage motors run on 3-6 volts and draw up to a few amps, making them perfect candidates for the DRV8833 motor driver carrier. Motor overheating can be caused by excessive stalling, even at very low voltages. Pololu recommend that you use stall-detection sensors, or just watch your robot, to make sure that it doesn’t stall for more than a few seconds at a time. For motor specs, see the Mabuchi motor FA-130 (#18100) data sheet (58k pdf).

Note that you can replace the motor in this kit with a lower-current, higher-voltage motor if you want to use this gearbox with controllers such as the qik 2s9v1 dual serial motor controller, TB6612FNG dual motor driver carrier, or Baby Orangutan B-328 robot controller.

To compare all Tamiya gear box kits, see the Tamiya Gearbox Gear Ratio Comparison.

Note: The 3-speed crank-axle gearbox is a kit; assembly is required. To use the kit in robotics projects, you need to connect the motors to your own robot controller.

People often buy this product together with:

Tamiya 70097 Twin-Motor Gearbox KitTamiya 70097 Twin-Motor Gearbox Kit
Tamiya 70096 Off-Road Tires (2 tires)Tamiya 70096 Off-Road Tires (2 tires)
Tamiya 70103 Universal Gearbox KitTamiya 70103 Universal Gearbox Kit

General specifications

Typical operating voltage: 3 V
Gear ratio options: 17, 58, 204 :1
No-load motor shaft speed @ 3V: 12300 rpm1
No-load current @ 3V: 150 mA2
Stall current @ 3V: 2100 mA
Motor shaft stall torque @ 3V: 0.5 oz·in3
Color: gray

Notes:

1
A theoretical speed of the gearbox output shaft can be computed by dividing this speed by the gear ratio.
2
This is the no-load current of the motor when disconnected from the gears in the gearbox; the no-load current of the entire gearbox with the motor connected will be slightly higher and will vary depending on the gear ratio.
3
A theoretical torque of the gearbox output shaft can be computed by multiplying this torque by the gear ratio.

Documentation and other information

  • Tamiya Gearbox Gear Ratio Comparison

    Table comparing the gear ratios available in the many different Tamiya gearboxes Pololu carry.

  • Tamiya “Toy” Motor Testing by Adam Borrell (a.k.a nexisnet) (Printable PDF)

    Adam, who posts under the username nexisnet on the Pololu forums, has performed a detailed series of experiments to determine how operating voltage affects the lifetime of the Mabuchi FA-130 motor, which happens to be the motors used in the Tamiya 70168 Double Gearbox, 70167 Single Gearbox (4-Speed), 70097 Twin-Motor Gearbox, 70093 3-Speed Crank-Axle Gearbox, 70110 4-Speed Crank-Axle Gearbox, and 70103 Universal Gearbox.
