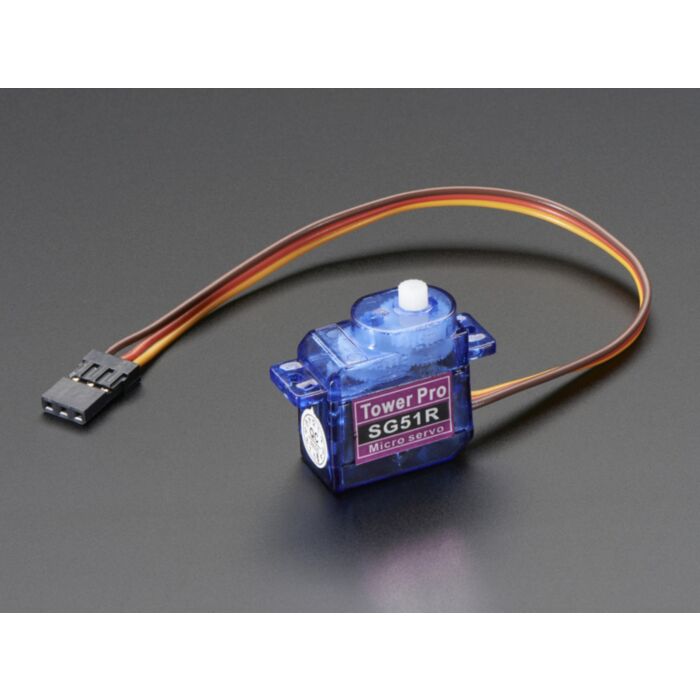

Sub-micro Servo - SG51R

SKU: ADA2201

$9.95 AUD, inc GST
$9.05 AUD, exc GST

More Views

Sub-micro Servo - SG51R
9.95 AUD

SKU: ADA2201

$9.95 AUD, inc GST
$9.05 AUD, exc GST
0 units ship today
Contact us if you need this product urgently

This is just about the cutest, tiniest little micro servo Adafruit could find, even smaller than the 9 gram micro servos Adafruit love so much.  It can rotate approximately 180 degrees (90 in each direction) and works just like the standard kind you're used to but much smaller.  You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino or by just wiring up with the Servo library. Comes with a few horns and hardware.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Technical Details

  • Dimension: 25mm x 22mm x 12mm / 1.0" x 0.9" x 0.5"
  • Operating Voltage: 4.8V
  • Stall Torque (4.8v): 0.6kg/cm
  • Operation Speed (4.8v): 0.1sec/60°
  • Operating Voltage: 4.8v
  • Wire: 150mm / 5.9"
  • Weight: 5g
  • Spline Count: 22
Documentation and Resources:
