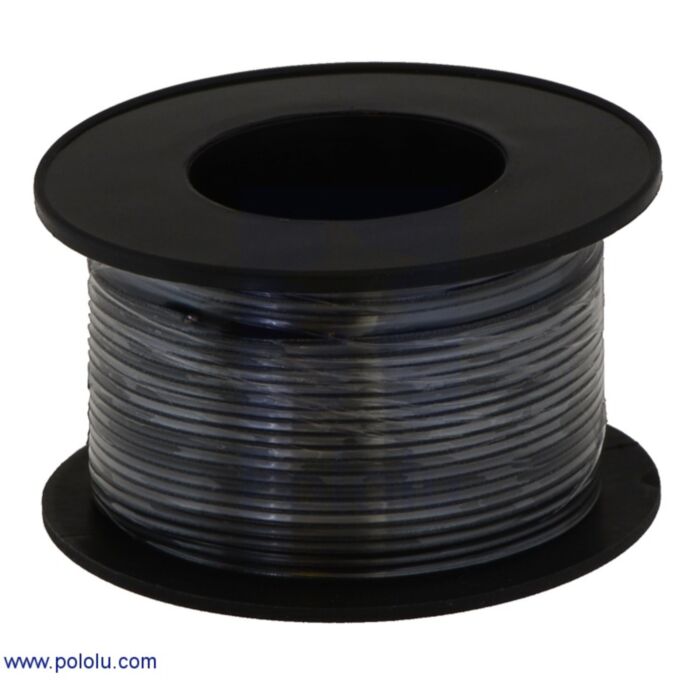

Stranded Wire: Black, 28 AWG, 90 Feet
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
The shipping address needs to be in the AusPost next day network
and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to
one business day due to AusPost pickup timings or for order verifications.
Quantity Discounts:
- 10-25 $14.46 (exc GST)
- 25+ $14.16 (exc GST)
Recommended Essentials:
 |
Pololu carry stranded hook-up wire in an assortment of gauges and colors:
Stranded wire is more flexible than solid wire and is good for projects where you need the wire to be able to bend. The wire ships on small plastic spools in lengths that depend on the gauge (see the table below for more information). One side of the spool includes a tab with a slot that can be used for hanging.
|
|
You should have a good wire stripping and cutting tool handy if you are going to get a spool of wire like this. If you want to make your own cables, you can crimp connectors to the ends, such as Pololu's male and female crimp pins for 0.1" housings (please make sure your crimping tool and crimp pins work with the gauge of wire you select).
The wires conform to the UL 1007 specification and are rated for up to 80°C and 300 VAC. The following table provides more details about the wire composition and dimensions:
| Wire gauge(AWG) | Strandcount | Strand diameter(mm / mil) | Avg. Insulation thickness(mm / mil) | Outer diameter(mm / in) | Length per spool(m / ft) |
|---|---|---|---|---|---|
| 30 | 7 | 0.101 / 3.97 | 0.38 / 15 | 1.1 / 0.043 | 30 / 100 |
| 28 | 7 | 0.127 / 5.00 | 0.38 / 15 | 1.2 / 0.047 | 27 / 90 |
| 26 | 7 | 0.160 / 6.30 | 0.38 / 15 | 1.3 / 0.051 | 21 / 70 |
| 24 | 11 | 0.160 / 6.30 | 0.38 / 15 | 1.4 / 0.055 | 18 / 60 |
| 22 | 17 | 0.160 / 6.30 | 0.38 / 15 | 1.6 / 0.063 | 15 / 50 |
| 20 | 26 | 0.160 / 6.30 | 0.38 / 15 | 1.8 / 0.071 | 12 / 40 |
The following video talks about some of Pololu's various wire and cable options:
People often buy this product together with:
 | Stranded Wire: Red, 28 AWG, 90 Feet |
 | Stranded Wire: Yellow, 28 AWG, 90 Feet |
 | Stranded Wire: Green, 28 AWG, 90 Feet |
Dimensions
| Length: | 90 ft |
|---|---|
| Outer diameter: | 1.2 mm |
| Weight: | 77 g |
General specifications
| Wire gauge: | 28 AWG |
|---|---|
| Color: | black |
