STEMMA QT / Qwiic JST SH 4-pin Cable with Premium Female Sockets - 150mm Long

Rating:

100% of 100

SKU: ADA4397 Brand: Adafruit

This 4-wire cable is a little over 150mm / 6" long and fitted with JST-SH female 4-pin connectors on one end and premium female headers on the other. Compared with...

$2.15 AUD, inc GST

$1.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $1.87 (exc GST)
25+ $1.82 (exc GST)

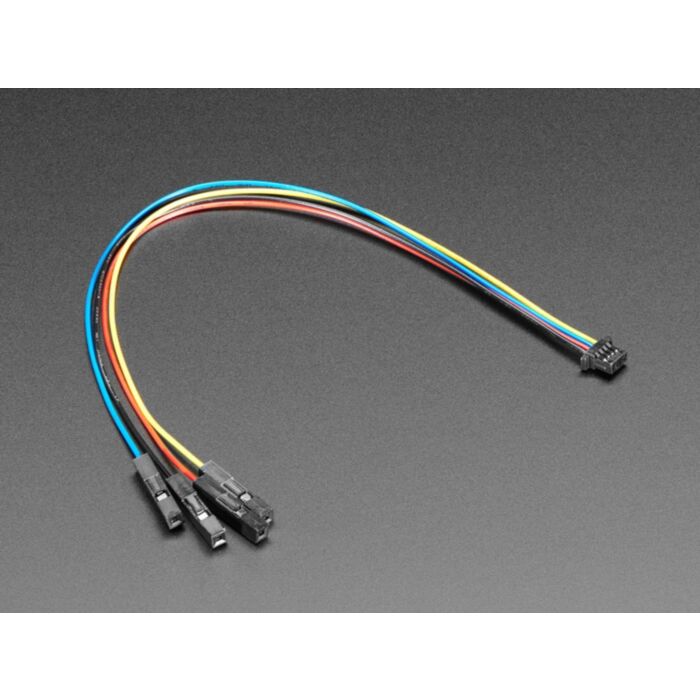

This 4-wire cable is a little over 150mm / 6" long and fitted with JST-SH female 4-pin connectors on one end and premium female headers on the other. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.

This cable can be used with Qwiic boards, to easily connect sensors and drivers to board with common 0.1" pin headers. When used with Qwiic the colors are:

Red - 3.3VDC Power
Black - Ground
Blue - I2C SDA Data
Yellow - I2C SCL Clock

For more information about JST SH connectors, visit the JST website

Technical Details

Diagram
