Steel L-Bracket for NEMA 23 Stepper Motors

SKU: POLOLU-2258 Brand: Pololu
This coated steel bracket lets you securely mount typical NEMA 23-size stepper motors to your project. The bracket features two slots for various mounting...
$14.35 AUD, inc GST
$13.05 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

  • 10-25 $12.65 (exc GST)
  • 25+ $12.39 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

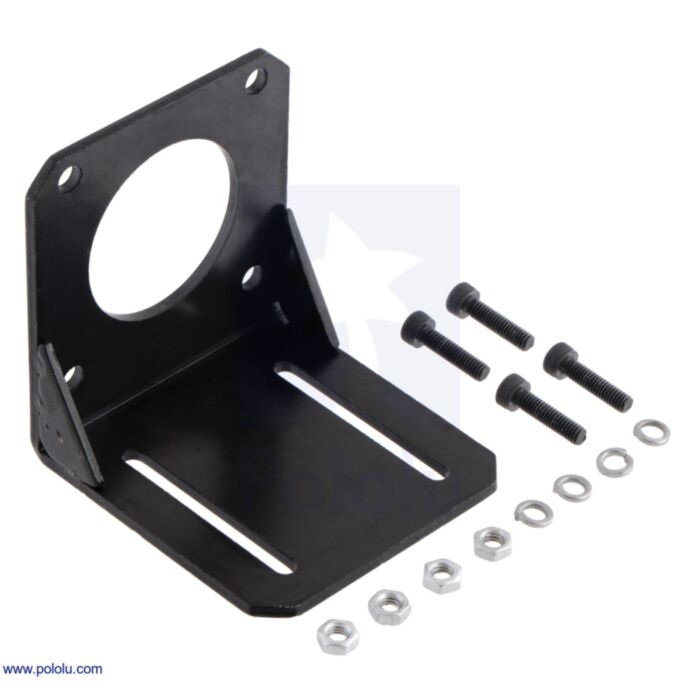

This sturdy black bracket is made from 3mm-thick coated steel and weighs about 160 g (5.7 oz). It is specifically designed to work with the typical faceplate mounting holes of NEMA 23 stepper motors. Two supports are welded in the corner along the bend of the bracket to provide extra reinforcement, and the bracket features two long slots for mounting it to a surface. Four 16 mm M4 screws, four M4 nuts, and four washers are included for securing the motor to the bracket. This bracket and included hardware work with all of the NEMA 23 stepper motors Pololu carry. Different screws might be required when using this bracket with stepper motors from other suppliers.

Dimension diagram of steel L-bracket for NEMA 23 stepper motors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (102k pdf).

People often buy this product together with:

Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×41mm, 5.7V, 1 A/PhaseStepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×41mm, 5.7V, 1 A/Phase
Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 8.6V, 1 A/PhaseStepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 8.6V, 1 A/Phase
Stepper Motor: Bipolar, 200 Steps/Rev, 57×76mm, 3.2V, 2.8 A/PhaseStepper Motor: Bipolar, 200 Steps/Rev, 57×76mm, 3.2V, 2.8 A/Phase

Dimensions

Weight: 160 g1

Notes:

1
For bracket only (no screws, nuts, or washers, which weigh an additional 15 g).
