Steedan MA350 – Low Profile, 5-in-1 Magnetic Mount Combination Ante

SKU: WRL-17732 Brand: Sparkfun

The Steedan delivers powerful MIMO antenna technology 5G/4G and Wi-Fi 6 2.4/5.8/7.125GHz and a GPS/GLONASS/BeiDou patch antenna for GNSS location services...

$464.95 AUD, inc GST

$422.68 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 20 and Jul 27

Quantity Discounts:

5+ $410.00 (exc GST)
25+ $401.55 (exc GST)
100+ $384.64 (exc GST)

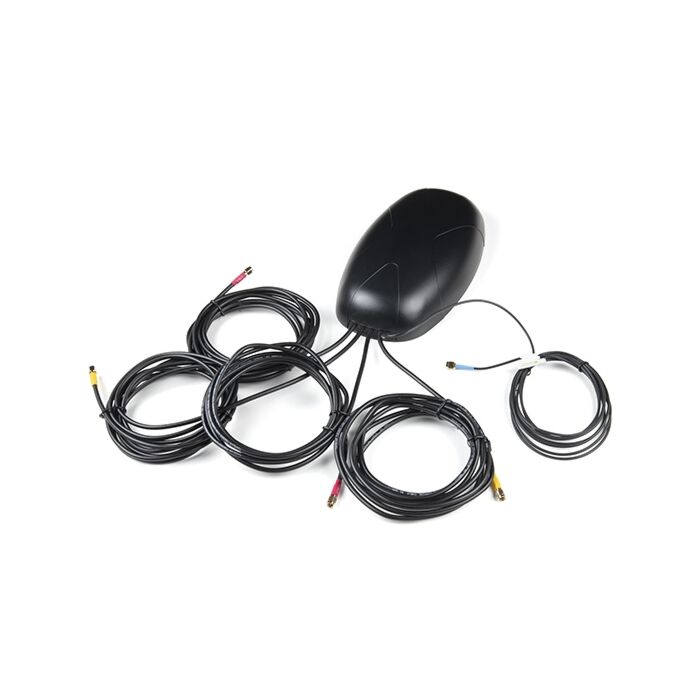

The Taoglas Steedan MA350 is a 5-in-1 next-generation low profile magnetic mount antenna for a vehicle, outdoor building, and heavy equipment roof applications. It has a fully IP65 rated waterproof robust ABS enclosure and base. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel is not feasible. It can be mounted on steel surfaces and its ultra-strong neodymium magnets. A soft foam cushion on the base protects the mounting surface during installation and removal. Only 48mm high it mounts discretely to the target application out of sight of most onlookers.

This outstanding antenna delivers powerful MIMO antenna technology 5G/4G and Wi-Fi 6 2.4/5.8/7.125GHz and a custom-tuned GPS/GLONASS/BeiDou patch antenna for GNSS location services. The 5 internal antennas have superior isolation. The 5G/4G antennas also include backward compatibility to work at most worldwide 3G and 2G bands.

Typical Applications:

Next Generation OEM Automotive Connectivity
Multimedia, Navigation, and Telematics Systems
V2V, V2X and Fleet Management Applications
First Net Responder Routers

The MA350 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

Minimum Frequency: 617 MHz
Maximum Frequency: 5.85 GHz
Protocol - Cellular, NBIoT, LTE: LTE
Protocol - GPS, GLONASS: GPS, GLONASS, GNSS
Protocol - WiFi - 802.11: WiFi
Mechanical Style: Module
Style: Dome
Impedance: 50 Ohms
Power Rating: 10 W
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Electrical Type: MIMO
Number of Bands: 5 Band
Mounting Style: Magnetic Mount
Termination Style: RP-SMA Male, SMA Male
Antenna Connector Type: RP-SMA Male, SMA Male
Center Frequency: 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3300 MHz to 3600 MHz, 2.4 GHz, 5.8 GHz
Application: GNSS, 5G, 4G, WiFi
Length: 247 mm
Width: 144.3 mm
Height: 47.8 mm
IP Rating: IP65
Cable Type: CFD-200, RG-174
Cable Length: 3 m
Polarization: Linear, RHCP
Ground Plane Size: 30 cm x 30 cm
Unit Weight: 1.213 lbs

Datasheet
