SparkFun Triple Axis Magnetometer Breakout - MLX90393 (Qwiic)

SKU: SEN-14571 Brand: Sparkfun

It’s time to start utilizing the superior magnetometer, and what better way than to throw it onto an easy-to-use breakout board? The SparkFun MLX90393 Magnetometer...

$28.70 AUD, inc GST

$26.09 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 18 and Nov 21

Quantity Discounts:

10-25 $25.05 (exc GST)
25+ $24.26 (exc GST)

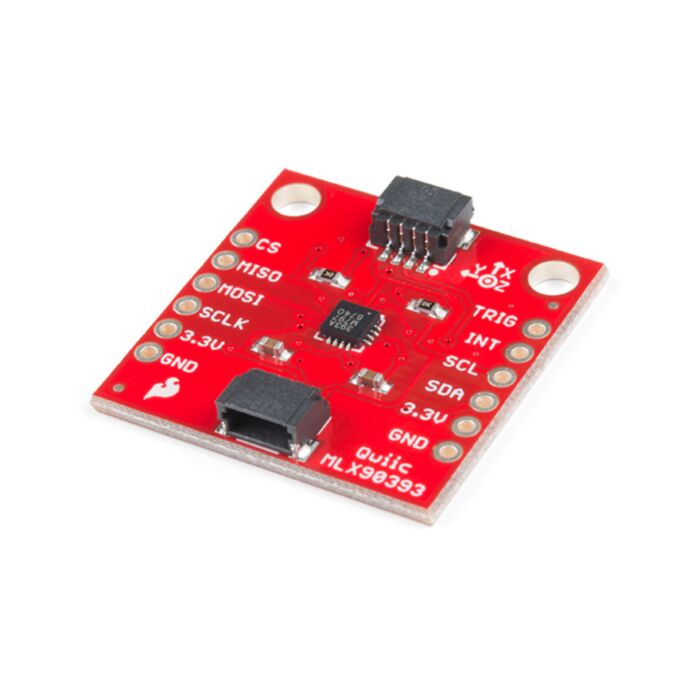

It's time to start utilizing the superior magnetometer, and what better way than to throw it onto an easy-to-use breakout board? The SparkFun MLX90393 Magnetometer Breakout is a triple-axis magnetic sensor board capable of sensing very small fields (like the Earth's magnetic field), while still behaving as one would expect during saturation in larger fields (like a nearby magnet). The MLX90393 breakout can be used as a compass sensor but also works well as a non-contact controller, a flow meter with a magnetic impeller, or a linear actuator position sensor. To make it even easier to to get your readings, all communication is enacted exclusively via I²C, utilizing our handy Qwiic system. However, Sparkfun still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

The MLX90393 features a resolution rate of 0.161µT with an operating voltage range of 2.2V to 3.6V at 100µA. This breakout is also equipped with a couple of jumper pads on the back of the board, a set that allows you to change the I²C address as well as one that can put the breakout into SPI mode (if I²C isn't your cup of tea).

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the MLX90393 Magnetometer Breakout Guide

Features

Operating Voltage: 2.2V-3.6V
Current Consumption: 100µA (Typ.)
Operating Temperature: -20°C - 85°C
Resolution: 0.161µT
Max Full Scale Resolution: 44,000µT
I²C Address: 0xC0
2x Qwiic Connection Ports

Documents

Schematic
Eagle Files
Hookup Guide
Datasheet (MLX90393)
Arduino Library (Special thanks to Ted Yapo!)
Qwiic Page
GitHub

This product is listed in:

Sensors>Magnetic
