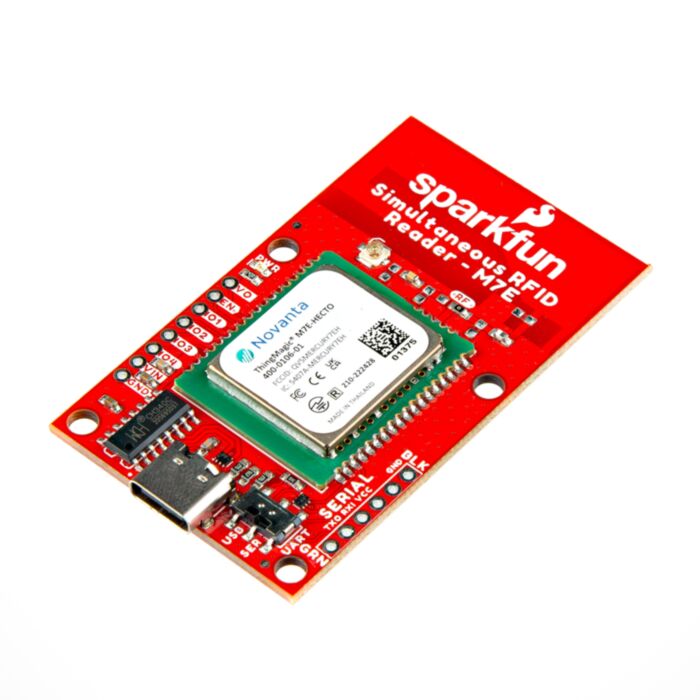

SparkFun Simultaneous RFID Reader - M7E Hecto

SKU: WRL-24738 Brand: Sparkfun

The SparkFun M7E Hecto Simultaneous RFID Reader simplifies reading UHF RFID tags (EPCglobal Gen 2) with its powerful M7E-HECTO module by JADAK...

Special Price $449.42 AUD, inc GST

Regular Price $582.39 AUD, inc GST

$408.56 AUD, exc GST

Special pricing ends 14 October 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jul 22 and Jul 24

The SparkFun M7E Hecto Simultaneous RFID Reader simplifies reading UHF RFID tags (EPCglobal Gen 2) with its powerful M7E-HECTO module by JADAK^©. This improved version builds upon the popular M6E reader by offering easier connectivity and enhanced features.

The M7E Hecto boasts high performance, reading tags at an impressive rate of up to 300 tags per second and writing at 80 milliseconds. It provides adjustable power output ranging from 0dBm to 27dBm. A suitable external antenna (sold separately) enables reading tags from distances up to 16 feet (4.9 meters). The on-board antenna offers a read range of one to two feet. Range performance depends on a wide variety of parameters so range results may vary.

For a solder-free setup, the reader connects directly to a computer via USB-C, allowing you to read tags immediately. This is thanks to the built-in CH340C converter. The reader also offers flexibility in power options. You can choose between USB-C or a 0.1in.-header for connecting to an external 3.3V source or microcontroller of your choice. A convenient switch on the board lets you effortlessly switch between these interfaces.

Warning: Ensure that personnel do not stand in the radiation beam of the antenna unless they are more than 21cm away from the face of the antenna (to adhere to FCC limits for long-term exposure). See Datasheet for more information.

Get Started with the SparkFun M7E Simultaneous RFID Reader Guide

Features

M7E Hecto UHF RAIN^® RFID Reader
EPCglobal Gen 2 (ISO 18000-6C) with nominal backscatter rate of 250kbps
Separate read and write power levels, command adjustable from 0dBm to 27dBm in 0.01 dB steps
Up to 300 tags/sec to read 96-bit EPC
80msec typical for standard write of 96-bit EPC
Supply Voltage: 3.3V-5V
Supply Current: 1A Max
- Internal current limiting circuit
Power Mode Consumption (@5V):
- Full: 0.665W
- Minsave: 0.140W
- Sleep: 0.080W
Operating Temperature Range: -40°C to 60°C
- Built-in thermal-management
Serial Interfaces:
- USB-C Connector
- 0.1"-Spaced PTH Header (3.3V logic)
2-way Switch for Serial Interface Selection
Enable & GPIO PTH Pins
Antenna Options
- Integrated PCB Trace Antenna (Default)
- u.FL Connector for External Antenna Connection

Documents
