Makerverse SMT Protoboard

Rating:
100% of 100
SKU: CE08044 Brand: Makerverse
CE Original
The gold standard prototyping platform for analogue electronics or high-frequency digital designs.
$4.85 AUD, inc GST
$4.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $3.70 (exc GST)
  • 25+ $3.17 (exc GST)
- +

342 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

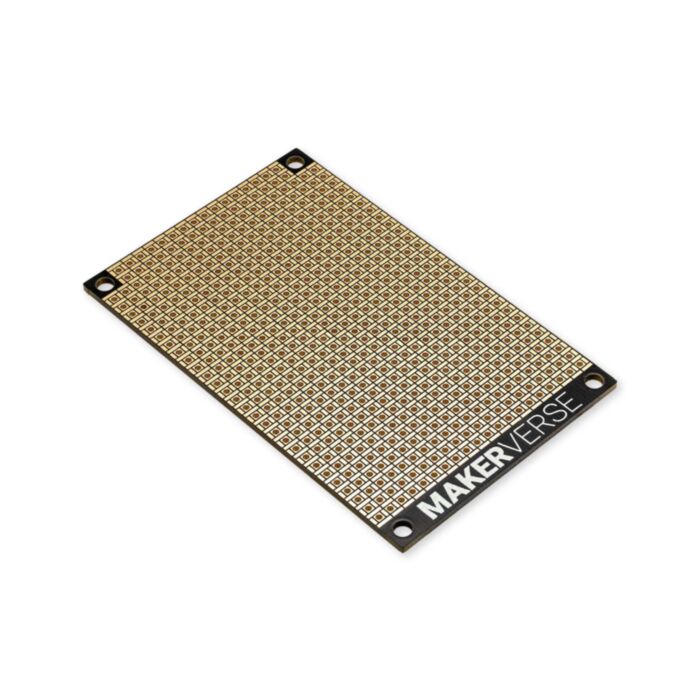

The Makerverse™ SMT Protoboard is the gold standard prototyping platform designed for analogue electronics or digital designs up to 100MHz. The front side features a surface-mount pad array with hybrid through-hole pads, and the back side provides easy grounding with a checkered ground-pour. Any through-hole pad can be easily connected to the ground-pour by soldering on the back side - perfect for high-frequency designs where ground-bounce or noise is a concern.

  • Perfect for analogue and high-frequency digital projects
  • Accommodates most SMT components
  • Hybrid SMT / Through-hole pads allow for mixed designs
  • Ground plane provides shielding, easy grounding options
  • Gold finished
  • Through-hole plated PCB

Tech Specs:

  • Dimensions: 52x83mm
  • Mounting Holes: 4x M3 Holes, 46x77mm between centers
  • Plated through-holes: 1mm diameter, 2.54mm pitch
  • ENIG finishing

Resources:



Makerverse Protoboards

Makerverse Overview

Makerverse hardware is designed for makers, by makers. We're making the tools and modules we think are the most useful to electronics enthusiasts and people that just want to get their projects done. As experienced makers ourselves, we're building in the features and design considerations that we find most valuable and have wished for in other modules.

All Makerverse devices are products designed by our team in Newcastle Australia. We manufacture the modules here as well.

"Makerverse" and the Makerverse Logo are trademarks of Core Electronics Pty Ltd.
