SparkFun Qwiic OLED Display (1.5 in., 128x128)

Name: SparkFun Qwiic OLED Display (1.5 in., 128x128)
Brand: Sparkfun
SKU: LCD-29530
Price: 53.70 AUD
Availability: OutOfStock

SKU: LCD-29530 Brand: Sparkfun

Add a crisp, high-contrast user interface to your project with this compact 1.5-inch OLED display, featuring effortless Qwiic integration and low power consumption.

$53.70 AUD, inc GST

$48.82 AUD, exc GST

Out of Stock

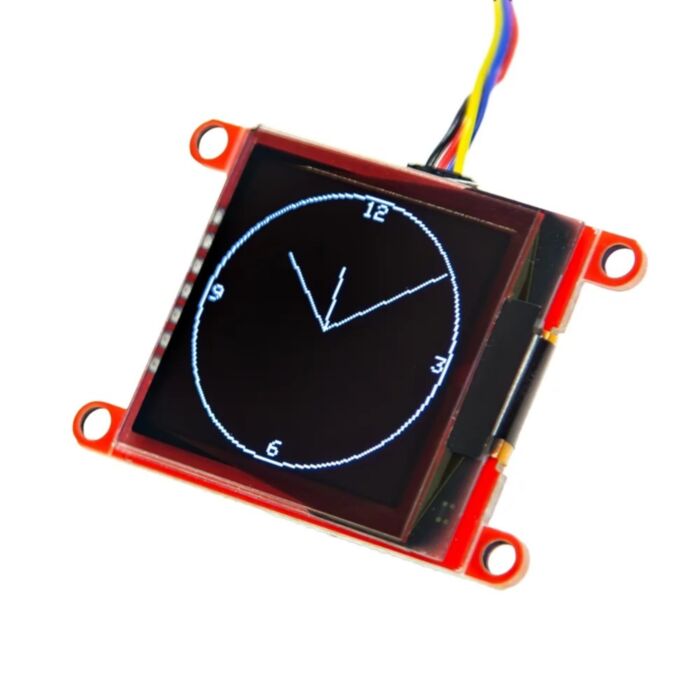

The SparkFun Qwiic OLED Display offers a sharp, professional user interface in a compact 1.5-inch form factor. Featuring a 128x128-pixel resolution, this monochrome white-on-black display uses Chip-on-Glass (COG) OLED technology, providing a 1:1 aspect ratio and a high-pixel-density canvas ideal for custom graphics and data plotting. Because OLED pixels emit their own light, no bulky backlight is required, resulting in superior image quality and "deeper blacks" compared to traditional LCDs.

Versatile Connectivity

Whether you need rapid prototyping or high-speed data transfer, this board is designed to fit your workflow:

Qwiic Connect System: For the most straightforward integration, the board features two Qwiic connectors capable of I²C communication. Simply plug it in using a Qwiic cable to start displaying graphics and text immediately with no soldering or breadboarding required.
SPI Capable: If your application requires faster refresh rates, SparkFun has broken out standard 0.1" pins for SPI communication*.

By eliminating the need for a backlight, chip-on-glass enables this display to remain thinner and more power-efficient than standard LCDs.

*Using SPI requires cutting traces on the back of the board and ensuring your microcontroller uses 3.3V logic.

Features & Specifications

1.5" square 128x128 pixel display
Display: WEO128128HWAP3N00000
Monochrome White on Black
Display Area: 26.86mm x 28.86mm
Display Driver: CH1120
I²C Interface (Default)
- Addresses: Ox3C (Default) 0x3D
SPI Interface (Alternate)
- 3.3V Logic Only
- 0.1"-spaced PTH Header
Red Power LED
2x Qwiic Connectors

Documentation

Schematic
KiCad Files
Hookup Guide
Datasheets
- WEO128128HWAP3N00000
- CH1120
GitHub Repository
