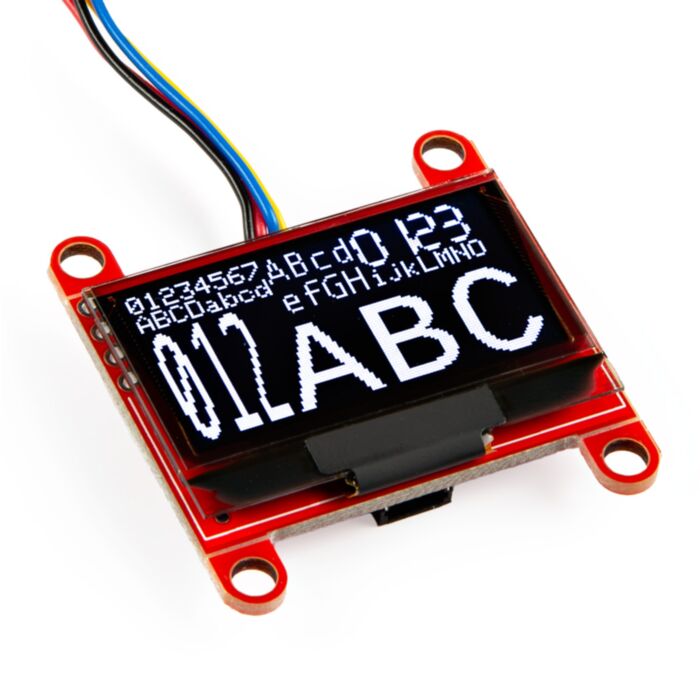

SparkFun Qwiic OLED - (1.3in., 128x64)

SKU: LCD-23453 Brand: Sparkfun

The SparkFun Qwiic OLED 1.3in. is a Qwiic-enabled monochrome OLED that displays crisp white-on-black images and text...

$25.20 AUD, inc GST

$22.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $21.99 (exc GST)
25+ $21.31 (exc GST)

The SparkFun Qwiic 1.3in OLED is a compact, easy-to-use display perfect for adding a visual element to your Arduino, Raspberry Pi, or other microcontroller projects. With a vibrant 1.3-inch OLED screen and a resolution of 128x64 pixels that deliver crisp white-on-black, it's ideal for displaying text, graphics, and even simple animations.

Since this OLED is Qwiic-enabled, hook-up is a breeze and requires no soldering! The default I²C address is 0x3D, but by soldering the address jumper on the back of the board, you can select 0x3C.

The SparkFun Qwiic OLED 1.3in. takes advantage of the existing SparkFun OLED Arduino library to make it simple to get up and running quickly. Download it through the Arduino Library Manager tool by searching for 'SparkFun OLED' or download it from the GitHub repository linked in the Documents tab.

Whether you're a beginner or an experienced maker, the SparkFun Qwiic OLED is a versatile and affordable display that can add a lot of functionality to your projects.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic OLED 1.3in Hookup Guide

Features

Number of Pixels: 128 x 64
Panel Size: 34.5 x 23.0 x 1.4 (mm)
Active Area: 29.42 x 14.7 (mm)
I²C Address: 0x3D (default), 0x3C (selectable)
2x Horizontal Qwiic Connectors
Supply Voltage: 3.0-3.3V
