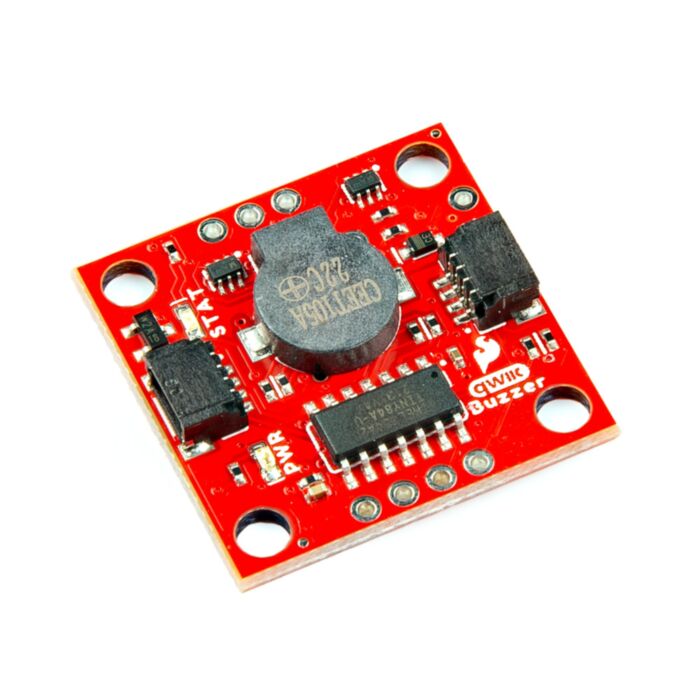

SparkFun Qwiic Buzzer

SKU: BOB-24474 Brand: Sparkfun

The SparkFun Qwiic Buzzer adds simple beeps and buzzes to your projects via I2C. Make some noises to alert you when something interesting happens...

Special Price $10.60 AUD, inc GST

Regular Price $13.43 AUD, inc GST

$9.64 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 13 and May 14

The SparkFun Qwiic Buzzer adds simple beeps and buzzes to your projects via I²C. Make some noises to alert you when something interesting (or urgent) happens. Simply connect a Qwiic cable and load up some pre-written code to an Arduino to start making noises!

The board includes an ATtiny84 with custom firmware to control the piezoelectric buzzer over I²C. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still broke out 0.1"-spaced PTH pads if you prefer to use a breadboard to access the board's I2C, power, trigger, and reset pins on the board's edge. A 2.2kO pull-up resistor is included on the data and clock lines.

A set of transistors control the buzzer's volume. At full volume, it allows the full current of about ~95mA, which makes it really loud. A flyback diode is included to discharge any energy remaining when the buzzer is turned off. For those who want to control the loudness of the buzzer, a footprint is available to solder a custom PTH resistor to one of the transistors. Just make sure to cut the jumper labeled "JP1." Two LEDs are also included on the board for power and status.

We've written an Arduino Library to control the volume, frequency, duration, and I²C address. There are even examples of how to play a quick melody and sweet sound effects! You can download the library through the Arduino library manager by searching 'SparkFun Qwiic Buzzer,' or you can get the GitHub repo as a .zip to install the library from there manually. For those who want a simple buzz without an Arduino, you can also make noise by simply grounding the trigger pin! We've even ported the library as a Python package!

This board is great for adding a simple audible sound to your projects. Pair the board with the Qwiic RTC to make an alarm clock, play a tune with the Qwiic RFID, or add a sound effect to your robot. So what are you waiting for?!? Start making some noise in your projects with the SparkFun Qwiic Buzzer!

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic Buzzer Guide

Features

Recommended Input Voltage: 3.3V
ATtiny84 Pre-programmed with Custom Firmware
2x Qwiic Connectors
I²C Controlled Buzzer
Default I²C Address: 0x34 (Default)
Built-in I²C 2.2kO Pull-Up Resistors
LED
- Power (PWR)
- Status (STAT)
Jumpers
- I²C Pull-Up Resistors
- STAT
- PWR
- JP1
Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
Weight: 2.85g

Documents

This product is listed in:

Breakouts & Modules>Audio
