SparkFun Pulsed Coherent Radar Sensor - Acconeer XM125 (Qwiic)

SKU: SEN-24540 Brand: Sparkfun

The SparkFun Qwiic Pulsed Coherent Radar Sensor - Acconeer XM125 brings powerful 60 GHz radar technology to your projects...

$96.70 AUD, inc GST

$87.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 22 and Jul 24

Quantity Discounts:

6-12 $85.27 (exc GST)
12+ $83.51 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

Forget ultrasonic and infrared sensors; the SparkFun Qwiic Pulsed Coherent Radar Sensor - Acconeer XM125 brings powerful 60 GHz radar technology to your projects. This sensor isn't limited to surface detection; it can see through walls, cabinets, and even pockets (depending on the material), making it perfect for unique applications. Measure distances with millimeter precision, detect motion, the speed of an object, or even gestures!

The XM125 boasts an impressive range of up to 20 meters, allowing you to create long-range sensing projects. Despite its power, the sensor has remarkably low in power consumption, which is ideal for battery-powered applications. The real magic lies in the sensor's ability to do more than measure distance; the XM125 can differentiate between stationary objects and moving targets using pulsed coherent radar. This means you can sense an object's presence and how fast something is moving!

We've included a USB type-C connector, ESD protection diodes on the USB data lines, and a CH340C USB-to-serial converter to connect the XM125 directly to your computer's COM port. Power is regulated down for the XM125 with the AP2112K 3.3V/600mA and RT9080 1.8V/600mA voltage regulators. Buttons for reset and boot are included when resetting the module or setting the board into bootloader mode. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still have broken out 0.1in.-spaced pins if you prefer a breadboard.

We've written an Arduino library when the I²C presence or distance detection firmware is loaded onto the XM125 module. With the I²C presence detection firmware, you can sense when an object is moving in an environment and how far away it is from the sensor. You can detect slow and fast movements with the inter-presence and intra-presence scores, respectively. The I²C distance detection firmware is similar to the presence detector by providing distance measurements. However, distance detection will provide information when it detects objects within range. The distance detection firmware can also adjust the sensor's threshold and sensitivity. The read range can also be configured to a certain distance away with either firmware.

Acconeer has also developed a visualization tool written in Python that demonstrates data collection in real time. The Acconeer Exploration Tool is an incredible resource, especially when starting out with the XM125 module to debug and explore the sensor's capabilities. This allows you to fine-tune the sensor for your application. For example, it will graph distance or presence sensing, giving you a count of the number of sweeps, which communication port data is being sent through, and much more. It will also guide you to the optimal sensor settings and help you fine-tune the data processing for your final product implementation. The tool supports Windows and Linux and requires Python version 3.8 or later. This tool is available through their GitHub Repository. Head on over and take a look!

With the SparkFun Qwiic Pulsed Coherent Radar Sensor, a world of new project possibilities opens up. Imagine creating presence detection systems for smart homes and security applications, parking space occupancy detection, gesture recognition interfaces for unique user control, level measurement (for example, in tanks or waste containers), through-wall imaging systems for search and rescue, or even advanced robotics with object avoidance and navigation.

Note: Due to the higher frequencies, pulsed coherent radar sensors may be regulated in certain countries. Be sure to check local regulations before use.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started With the SparkFun Pulsed Coherent Radar Sensor – XM125 Guide

Features

1x USB Type C Connector
ESD Protection Diodes for USB Data Lines
CH340C USB-to-Serial Converter
Voltage: 5V or 3.3V but all logic is 3.3V
AP2112K 3.3V/600mA Voltage Regulator
RT9080 1.8V/600mA Voltage Regulator

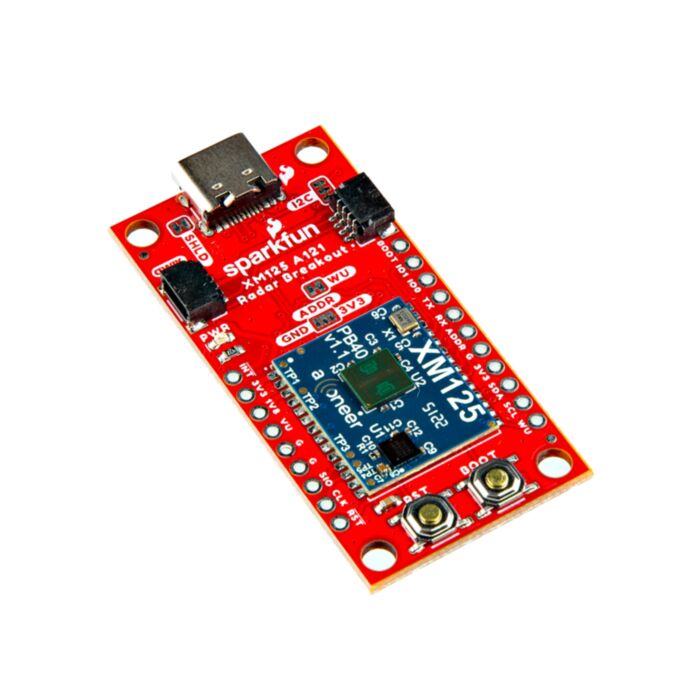

Acconeer XM125 Module
- A121
  - 60GHz Pulsed Coherent Radar (PCR)
  - Integrated Baseband, RF Front-End and Antenna in Package
  - Detect Distance, Speed, Motion, and Objects up to 20 Meters Away
  - Millimeter Precise Readings
  - Low Power Consumption
- STMicroelectronics STM32L431CBY6
  - 32-bit Arm® Cortex® M4 MCU
  - Clock Speed: 80 MHz
  - Flash: 128kB
  - RAM: 68kB
2x Horizontal Qwiic Connectors
Built-in I²C 2.2kO Pull-Up Resistors
I²C Address: (0x52, Default)
2x5 SWD Header Footprint
Buttons
- Reset
- Boot
LED
- Power
Jumpers
- USB Shield (SHLD)
- Power LED (LED)
- I²C Pull-Up Resistors (I2C)
- Wake Up (WU)
- I²C Address (ADDR)*
Board Dimensions: 1.0" x 2.0" (25.4mm x 50.8mm)
Weight: 6.35g

_{*Note: Selectable I²C address to be implemented in the future.}
