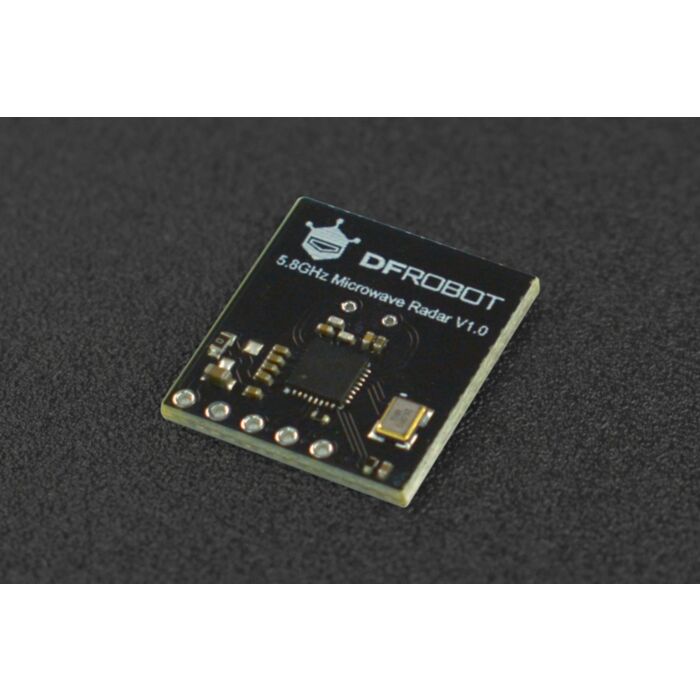

5.8GHz Microwave Radar Module

SKU: SEN0521 Brand: DFRobot

This microwave sensor is a microwave module that can transmit the electromagnetic wave of 5.8GHz. It can detect the difference between the transmitted...

$23.05 AUD, inc GST

$20.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $20.33 (exc GST)
25+ $19.91 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

Introduction

This microwave sensor is a microwave module that can transmit the electromagnetic wave of 5.8GHz. It can detect the difference between the transmitted wave and reflection wave to judge whether there is an object moving in the detection area.

Different from the traditional sensors that can only judge human presence by detecting big body movements, this microwave sensor can perform well in detecting small movements like breathing so as to determine human presence even if the person is sitting or sleeping. The detected result can be output through the serial port or high/low level of the I/O port.

Featuring high reliability and sensitivity, and strong anti-interference, it is small and easy to integrate, which can be widely used in fields that require motion detection, such as lighting, security, home, home appliances, hotels, garages, buildings, traffic, etc.

Board Overview

Wiring Diagram Example

Features

High reliability
High sensitivity
Strong anti-interference

Applications

Lighting
Security
Home appliances
Hotels
Garages
Buildings
Traffic

Specification

Operating Voltage: 4.5~5.5V
Operating Current: 22mA
Detection Distance: 11m
Equivalent Transmission Power: 3-5dBM
Beam Angle: 120*120°
Modulation Mode: FMCW, CW
Operating Frequency: 24GHz
Operating Temperature: -40°C ~ 85°C
Baud Rate: 115200
Dimension: 20*18mm/0.79*0.71"

Documents

Product wiki

Parts List

5.8GHz Microwave Radar Module x1
