SparkFun Mini Human Presence and Motion Sensor - STHS34PF80 (Qwiic)

SKU: SEN-23253 Brand: Sparkfun

The Qwiic Mini Human Presence and Motion Sensor is built around the STHS34PF80 low-power, high-sensitivity IR sensor for presence and motion detection...

$34.70 AUD, inc GST

$31.55 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 18 and Jun 23

Quantity Discounts:

10+ $30.60 (exc GST)
25+ $29.97 (exc GST)

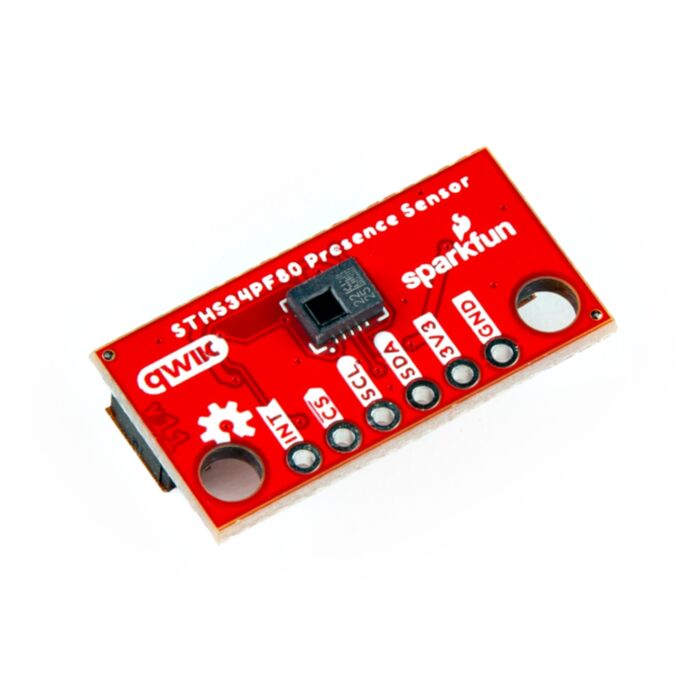

The SparkFun Qwiic Mini Human Presence and Motion Sensor is built around the STHS34PF80 Low-power, high-sensitivity infrared (IR) sensor for presence and motion detection from STMicroelectronics. This sensor features an infrared motion and presence detection sensor with an operating wavelength between 5µm and 20µm. This Mini-sized breakout board is only 0.5in. by 1in. big and has been equipped with two I²C Qwiic connectors to make interfacing with the STHS34PF80 a bit easier. It’s part of SparkFun’s Qwiic connect system, so you won’t have to do any soldering to figure out how things are oriented. However, Sparkfun still have broken out 0.1in.-spaced pins if you prefer to use a breadboard.

The STHS34PF80 sensor is designed to measure an object's precise black-body radiation (as described by Plank's law) and monitor ambient temperature conditions within its 80° field of view. The sensor comprises a matrix of floating vacuum thermal transistors MOS split into two parts, one exposed to IR radiation and the other shielded. The differential reading between the segments allows the sensor to remove self-heating effects. The STHS34PF80 also incorporates algorithms to detect and discriminate between stationary and moving objects. These features enable the sensor to work as a human presence and motion sensor in different applications such as alarm systems, anti-intruder systems, smart lighting, and room occupancy.

The sensor can operate in multiple lighting conditions and is unaffected by visible light or other bands thanks to the 5 to 20µm optical band-pass filter. The STHS34PF80 has output data rates between 0.25 to 30Hz and an available single-shot, accessed through its I²C/SPI interface.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features

Breakout Board

Dimensions: 1.0in. x 0.5in.
Two Qwiic Connectors
- I²C Address (7-bit): 0x5A (Default)
Two Mounting Holes:
- 4-40 screw compatible
Six PTH Pins
- 3V3, GND, SCL, SDA, CS, INT
Power LED (Red)

STHS34PF80 Features

Voltage Range: 1.7 to 3.6V
- Current Draw: 10µA
Interfaces: I²C or SPI
Optical wavelength: 5 to 20µm
Range: 4m (objects 70 x 25cm² in size)
Built-in Detection Algorithms:
- Identify stationary objects
- Distinguish between stationary and moving objects
Field of View: 80°
Output Data Rate: 0.25 to 30Hz
IR sensitivity: 2000 LSB/°C
RMS noise: 25 LSB_rms
Operating Temperature: -40 to 85°C (default gain mode)
Sensor accuracy: ±0.3°C (local)
One-shot mode
Factory calibrated

Documents

Schematic
Eagle Files
Board Dimensions
Arduino Library
Component Datasheets:
- STHS34PF805 Product Page
  - STHS34PF805 Datasheet
Qwiic Info Page
GitHub Hardware Repo
