Magnetic Rotary Encoder - 128 P/R (Quadrature) w/ Switch

SKU: COM-27884 Brand: Sparkfun

The CS19D128B is a high quality magnetic rotary encoder from Cooka. This is a low friction 'smooth' rotary encoder with 128 pulses per revolution and no...

Special Price $45.10 AUD, inc GST

Regular Price $54.40 AUD, inc GST

$41.00 AUD, exc GST

Special pricing ends 12 October 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Aug 01 and Aug 04

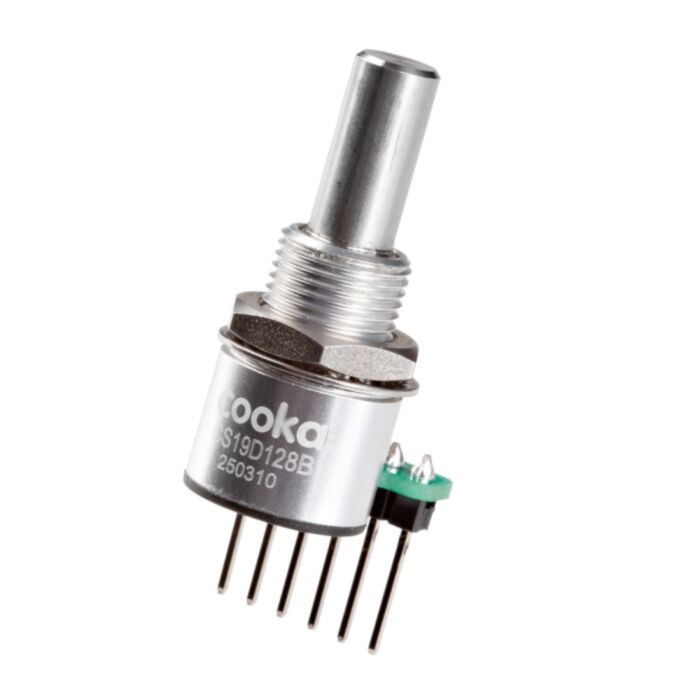

The CS19D128B is a high quality magnetic rotary encoder from Cooka. This is a low friction 'smooth' rotary encoder with 128 pulses per revolution and no indentations. Pressing in on the encoder closes the built-in switch. Unlike mechanical variants, the internal mechanism is magnetic based allowing the encoder to withstand a tremendous number of rotations before the encoder begins to experience slips. The SparkFun version of this encoder is unique in that it can be powered from 5V or 3.3V. The shaft is 6mm and is not recommended for use with 1/4" knobs. Reading 2-bit quadrature output (A/B square waves) from the encoder is commonplace for most microcontrollers and an example sketch is available to get you started.

Documentation

This product is listed in:

Sensors>Encoders
