SparkFun LTE GNSS Function Board - SARA-R5

SKU: GPS-18431 Brand: Sparkfun

The SparkFun SARA-R5 LTE GNSS Function Board is a robust development tool for u-blox's SARA-R510M8S module designed to work with the MicroMod Ecosystem...

$189.95 AUD, inc GST

$172.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 27 and May 30

Quantity Discounts:

5-10 $167.50 (exc GST)
10+ $164.05 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

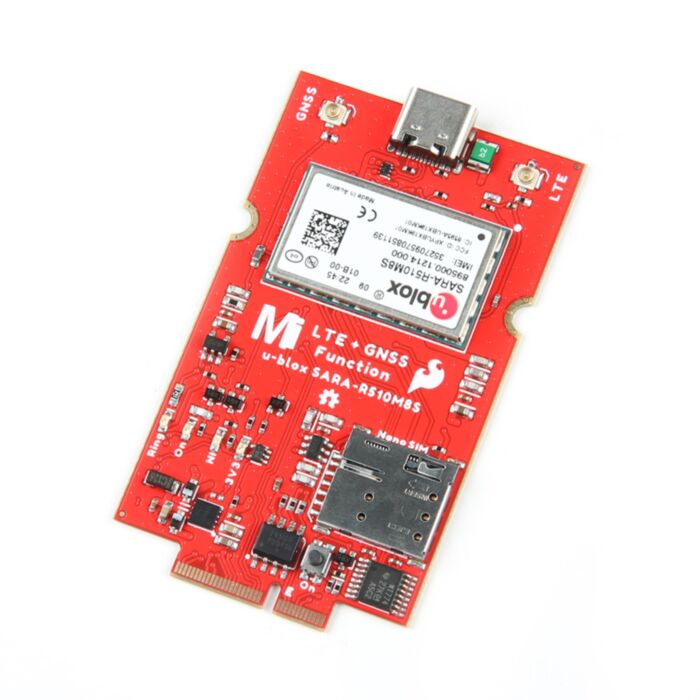

The SparkFun SARA-R5 LTE GNSS Function Board is a robust development tool for u-blox's impressive SARA-R510M8S module designed to work with the MicroMod Ecosystem. The SARA-R510M8S combines u-blox's UBX-R5 cellular chipset with their M8 GNSS receiver chipset to provide a 5G-Ready wireless IoT device with positioning data all on a single chip. As an asset tracker, the LTE GNSS Function Board offers Secure Cloud LTE-M communication for multi-regional use. It also has an integrated u-blox M8 GNSS receiver for accurate positioning information.

The UBX-R5 chipset supports many different forms of data communication from full TCP/IP sockets and packet switched data, through HTTP Get/Put/Post, FTP (the SARA has a built-in file system), or ping to good old SMS text messaging! The built-in u-blox M8 GNSS receiver provides accurate and reliable positioning with a separate GNSS antenna interface for an external antenna. The GNSS antenna and LTE connections are made via a pair of u.FL connectors. A nano SIM card slot is also included as well.

Utilizing our handy M.2 MicroMod connector, no soldering is required to connect it to your system. Simply match up the key on your processor and function board's beveled edge connector to their respective key on the M.2 connector, then secure them to the Main Board with screws.

This Function Board provides access to the UART (default configuration) with a Processor Board. The USB pins are also broken out to a USB-C connector for diagnostic purposes. Status LEDs for 3.3V, Ring Indicator, LTE ON, and LTE Network Indicator are included. A button is included for LTE Power On.

Note: The SparkFun LTE GNSS Function Board - SARA-R5 uses the "01B" product version of the SARA-R5 module (specifically the SARA-R510M8S-01B).

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the MicroMod SARA-R5 Function Board

Features

Input Voltage Range
- 3.7V to 6.0V
- Typ. 5V via Main Board's USB Connector
- Typ. ~3.7V to 4.2V via Main Board's LiPo Battery Connector
- Reverse Polarity Protection via Schottky Diode
I/O Voltage
- 3.3V
- 1.8V for LTE
USB Type C Connector
6V/2A Resettable Fuse
ESD Protection Diodes for USB Data Lines
3.3V Voltage Regulators
- AP7361C (Rated 1A) for SARA-R5
- AP2112K (Rated 600mA) for GNSS Antenna
u-blox SARA-R510M8S module providing Secure Cloud LTE-M data communication for multi-regional use
- Please check that your service provider offers LTE-M coverage for your area before purchasing
Integrated u-blox M8 GNSS receiver for accurate positioning information
Separate u.FL connectors for LTE and GNSS antennas
Nano SIM Socket
I²C Pull-Up Resistors (2.2kO)
I²C EEPROM
SARA Power On Button
LEDs
- Power (3.3V and VCCIO)
- SARA-R5 On
- Network Indicator
Jumpers
- USB Shield
- 3.3V LED
- 3.3V Regulator for GNSS Antenna
- LTE On LED
- LTE On
- LTE Reset
- Network Indicator LED
- Network Indicator
- LTE Power On
- LTE Ring Indicator LED
- I²C Pull-Up Resistors
- EEPROM Write Protection
Board Dimensions: 37.49mm x 61.00mm (1.48in. x 2.40in.)
Weight: 8.05g
