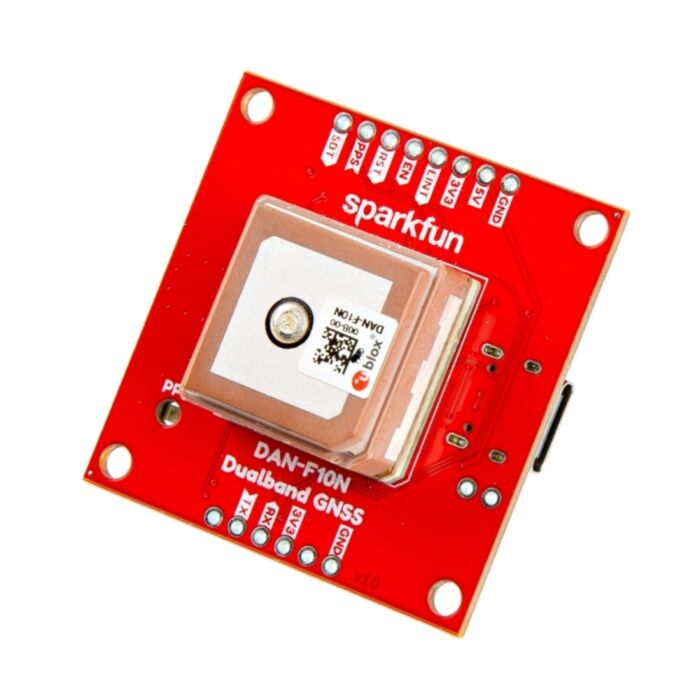

SparkFun Dualband L1/L5 GNSS Breakout - DAN-F10N

SKU: GPS-28435 Brand: Sparkfun

The SparkFun DAN-F10N Dualband GNSS Breakout is built around the powerful u-blox F10 engine, offering simultaneous reception of L1 and L5 frequency bands....

Special Price $91.30 AUD, inc GST

Regular Price $111.30 AUD, inc GST

$83.00 AUD, exc GST

Special pricing ends 03 November 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Aug 18 and Aug 19

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

The SparkFun DAN-F10N Dualband GNSS Breakout is built around the powerful u-blox F10 engine, offering simultaneous reception of L1 and L5 frequency bands. This board leverages u-blox's advanced multipath mitigation technology to isolate the strongest signals, delivering reliable, meter-level position accuracy even in dense urban canyons. To ensure signal integrity, the module incorporates a robust SAW-LNA-SAW RF front-end with an additional notch filter (LTE B13), providing excellent rejection of interference from nearby cellular modems.

This breakout features a compact, integrated 20mm x 20mm x 8mm Right-Hand Circular Polarized (RHCP) dual-band patch antenna, offering a great balance of size and performance. Its wide beamwidth allows for flexible device orientation. For even greater utility, an onboard switch will enable you to easily connect an external dual-band antenna.

The DAN-F10N is fully supported by the u-blox u-center-2 software for configuration, data logging, and real-time performance analysis. It is also compatible with AssistNow (Online, Offline, and Autonomous) A-GNSS services for significantly faster satellite acquisition. You can interface with the module using the standard NMEA 4.11 and UBX binary protocols.

Features & Specs

SparkFun Dualband L1/L5 GNSS Breakout - DAN-F10N Features

u-blox DAN-F10N GNSS module
- Concurrent signal reception: 5 + QZSS
- L1 and L5 frequency bands
- GNSS Constellations:
  - GPS (USA)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WASS (USA)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
  - KASS (Korea)
  - SouthPAN (Australian + New Zealand)
- Built-in NIC anti-jamming unit
Breakout board:
- Dimensions: 1.60" x 1.60" (40.6mm x 40.6mm)
- Weight: 0.84oz (23.75g)
- Four mounting holes:
  - 4-40 screw compatible
Connections:
- 14 PTH Pins
- UART interfaces (x1)
  - USB-C connector
  - 6 PTH pins (BlueSMiRF/Serial-to-UART)
LEDs:
- PWR - Red 3.3V power indicator
- PPS - Green PPS signal indicator
Backup battery

DAN-F10N General Features

GNSS receiver
- u-blox F10 engine
- GPS: L1 C/A, L5
- QZSS: L1C/A, L5
- Galileo: E1B/C, E5a
- BeiDou: B1C, B2a
- NavIC: L5
- SBAS: L1 C/A, L1S, L1Sb, B1C
Sensitivity
- Tracking & Navigation: -164dBm
- Reacquisition: -156dBm
- Cold start: -145dBm
- Hot start: -156dBm
Update rate: Up to 10Hz
Horizontal position accuracy
- 1.0m CEP (with SBAS)
- 1.5m CEP (without SBAS)
Acquisition
- Cold start: 28s
- Aided start: 2s
- Reacquisition: 2s
Interfaces
- 1x UART
- Digital I/O
  - Configurable timepulse (0.25Hz to 10MHz)
  - EXTINT input for wakeup
- JTAG debug interface (disabled by default)
Communication protocol
- NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
- UBX binary
- RTCM v3.4
- SPARTN v2.0.2
Security
- RF interference and jamming detection/reporting
- Spoofing detection/reporting
- Secure boot for firmware integrity
- Signed UBX messages (SHA-256
Misc
- Antenna switch function
  - Supports external active antenna (optional)
- Integrated RTC crystal and TCXO
Power
- Power supply: 2.7V to 3.6V
- Backup supply: 1.65V to 3.6V
- Power consumption: 63 mW (continuous tracking, 3V)
Temperature range: -40°C to +85°C
Package
- 56-pin LCC package
- 20 x 20 x 11.6mm
- 17.5g

Documentation
