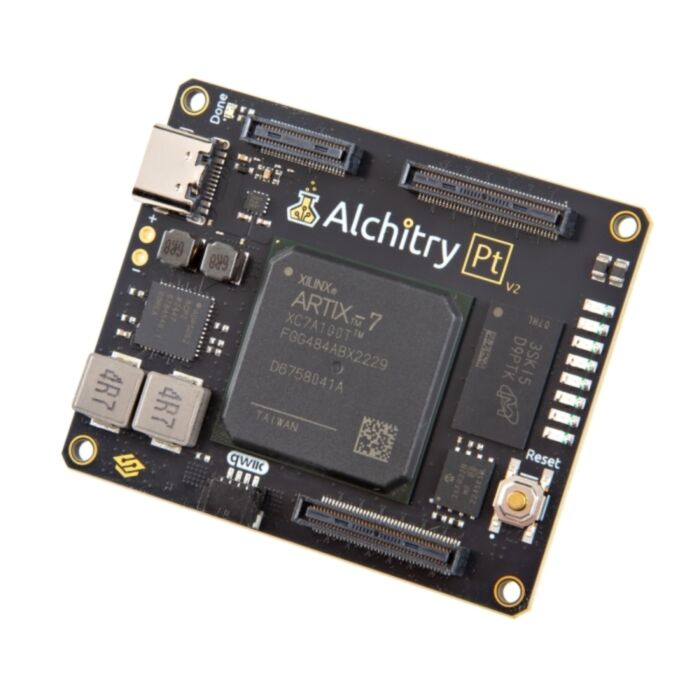

Alchitry Pt V2

SKU: DEV-27873 Brand: Sparkfun

The Alchitry Pt V2 is a platinum-tier FPGA development board that has been engineered for high-speed performance and compact designs. The Pt V2 was...

Special Price $412.50 AUD, inc GST

Regular Price $491.10 AUD, inc GST

$375.00 AUD, exc GST

Special pricing ends 23 November 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Sep 10 and Sep 15

The Alchitry Pt V2 is a platinum-tier FPGA development board that has been engineered for high-speed performance and compact designs. The Pt V2 was designed with a low-profile backside, featuring no components taller than 1.5mm. This enables the use of high-speed 1.5mm stack-height DF40 connectors, allowing you to build incredibly dense and powerful multi-board systems.

The Artix 7 FPGA requires a free license for Vivado. Click here for instructions on installing it.

As part of the modular Alchitry ecosystem, the Pt stacks with expansion boards called "Elements" to add prototyping spaces, buttons, LEDs, and more. To make a proper physical connection with its high-speed connectors, the Pt requires a Br, Fn, or Sp Element when connecting to an Ft, Ft+, or Hd board. This prevents the connectors from contacting capacitors on the bottom of the Pt.

Features & Specs

XC7A100T-2FGG84I FPGA
Connectors on both sides of the board allow two independent stacks (IO isn't shared)
206 IO pins
- All IO pairs are LVDS_25 capable inputs or TMDS_33 capable IO
- 112 on the top
  - 32 triple voltage (3.3V, 2.5V, or 1.8V) pins (16 pairs) capable of LVDS_25 IO
  - 76 routed as 100 ohm differential pairs
  - Remaining IO routed as 50 ohm single ended
  - 8 are on the control header
- 92 on the bottom
  - 24 routed as 100 ohm differential pairs
  - Remaining IO routed as 50 ohm single ended
  - 8 are on the control header
- 2 on QWIIC connector
20 GTP pins broken out on the bottom
- 2 clock input pairs
- 4 Tx pairs
- 4 Rx pairs
- 6.25 Gb/s bandwidth per pair
100MHz oscillator
8 general purpose LEDs
1 button (typically used as reset)
256MB DDR3L @ 800Mb/s (400MHz)
32MBit Configuration FLASH
FT2232HQ USB -> JTAG and USB -> UART (12Mbaud max) or FIFO (~8MB/s)
5-12V input voltage on-board power supply
- 3.3V @ 4A (IO)
- 2.5V @ 500mA (triple voltage pins, derived from 3.3V)
- 1V @ 4A (VCCINT)
- 1.8V @ 1.2A (VCCAUX, triple voltage pins)
- 1.35V @1.2A (DDR3L)
- 1.8V @ 200mA (analog)
- 1V @ 1.5A (MGTAVCC, derived from 3.3V)
- 1.2V @1.5A (MGTAVTT, derived from 3.3V)

Documentation

The Artix 7 FPGA requires a free license for Vivado. Click here for instructions on installing it.
