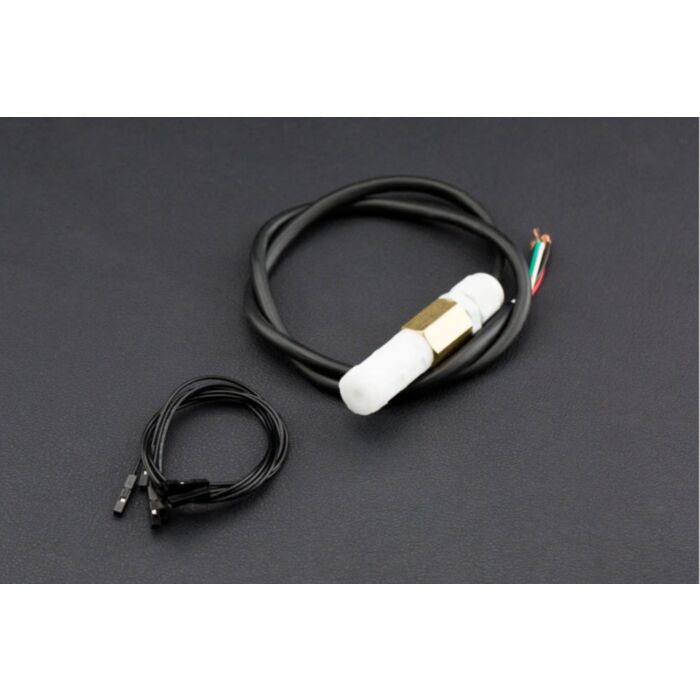

SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)

Rating:
100% of 100
SKU: SEN0227 Brand: DFRobot
This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe...
$38.80 AUD, inc GST
$35.27 AUD, exc GST

Quantity Discounts:

  • 10-25 $34.22 (exc GST)
  • 25+ $33.51 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This SHT20 I2C temperature & humidity sensor is equipped with a waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through a dual waterproof protection test. Note the waterproof part is the probe section that can be mounted into an environment. Take care with your setup to ensure adequate sealing is achieved for the back-section of the sensor if it will be exposed to high humidity.

The SHT20 I2C temperature & humidity sensor uses Sensirion techniques. The humidity sensor is of capacitive type and the temperature sensor is a bandgap. The SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with the early SHT1x series and SHT7x series, SHT20 shows strong reliability and long-term stability. It can measure the surrounding environment temperature and relative air humidity precisely.

The inner PCB has perfusion and encapsulation protection, and the probe enclosure is made of PE waterproof materials. This is a special waterproof breathable material that allows water molecules to seep in while blocking water droplets from seeping in at the meantime. The sensor won't be damaged even after a long time submerged in the water. There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with a microcontroller such as Arduino. We recommend DFRobot Gravity 4Pin Sensor Adapter convenient.

Sensor Interface:

  • Red VCC
  • Green GND
  • Black SDA
  • White SCL

Specification:

  • Operating Voltage: 3.3/5V
  • Communication Interface: I2C / IIC
  • Protection Class: waterproof anti-condensation
  • RH Response Time: 8s (tau63%)
  • Accuracy: ±3% RH / ±0.3°C
  • Measuring Range: 0-100% RH / -40 - 125°C
  • Dimension: 73mm * 17mm / 2.87 * 0.67 inches
  • Weight: 44g

Documents:

Parts List:

  • SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe) x1
  • Jumper Wires 7.8" F/F x4
