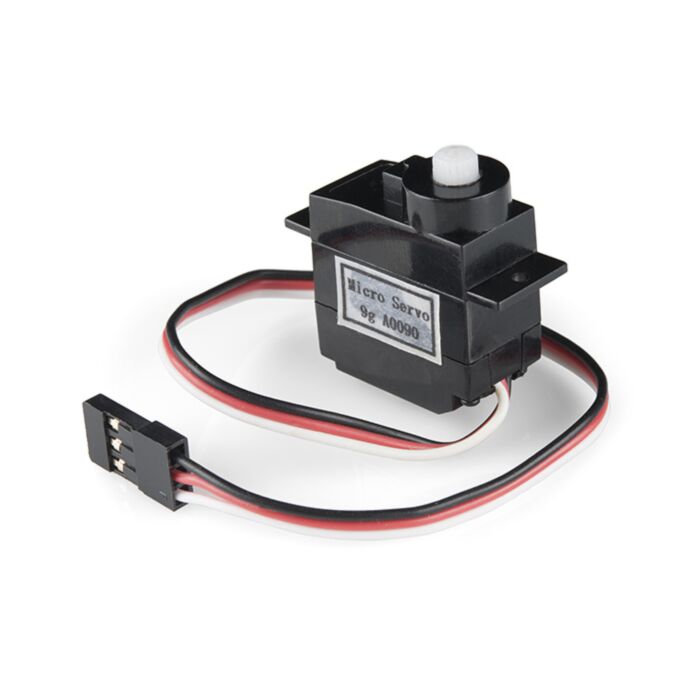

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is able to take in 6 volts and deliver 20.8 oz-in. of maximum torque at 0.10 sec/60°
This small servo comes with a standard 3 pin power and control cable, and all hardware listed below.
Note: This servo is rated for 180° rotation, but in actuality it only hits ~160°.
- Voltage: 4.8-6.0 Volts
- Torque: 16.6/20.8 oz-in. (4.8/6.0V)
- Speed: 0.15/0.10 sec/60° (4.8/6.0V)
- Rotation: ~160°
- Single Top Ball Bearing
- Nylon Gears
- 3-Pole Ferrite Motor
- 1x Micro Size Servo
- 1x Single Arm Micro Horn
- 1x Double Arm Micro Horn
- 1x Four Point Micro Horn
- 1x Circle Micro Horn
- 2x 2x8mm Phillips Screw
- 31.8 x 11.7 x 29mm
- Wire Length: 160mm
- Weight: 9g
Documentation and Resources:
- Arduino Projects with Motion (Using Sparkfun RedBoard)
Arduino Projects with Motion (Using Sparkfun RedBoard) Welcome to the Third Project Set from the Sparkfun Inventors Kit V4.0 Guide! In this tutorial, we will explore the operation of a Servo Motor and an UltraSonic Sensor in combination with some ot...
