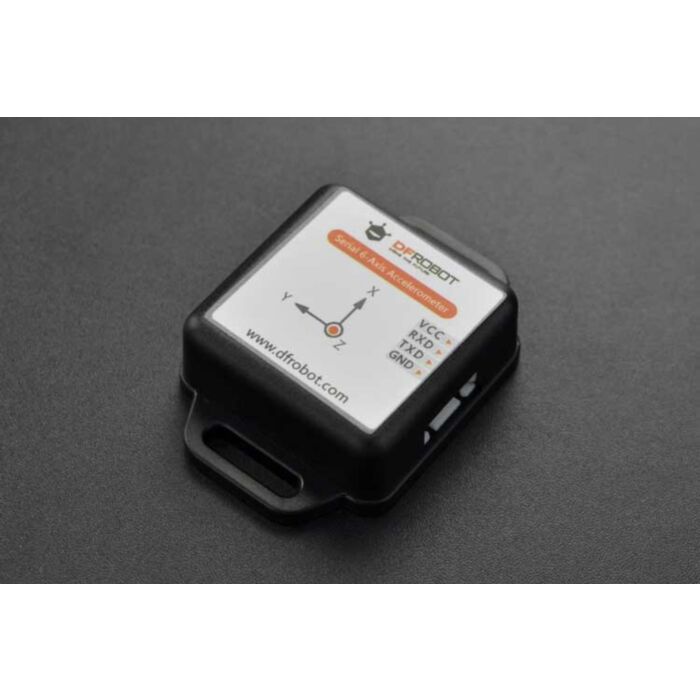

Serial 6-Axis Accelerometer for Arduino

SKU: SEN0386 Brand: DFRobot
This module integrates high-precision gyroscopes, accelerometer, microprocessor of high-performance and advanced dynamics solves and Kalman filter algorithms that...
$41.65 AUD, inc GST
$37.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $36.35 (exc GST)
  • 25+ $35.21 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This module integrates high-precision gyroscopes, accelerometer, microprocessor of high-performance and advanced dynamics solves and Kalman filter algorithms that aim to quickly solve the current real-time movement of the module attitude. The use of advanced digital filtering technology can effectively reduce measurement noise and improve accuracy.

The module comes with built-in gesture solver that can get accurate attitude in dynamic environment combining with dynamic Kalman filter algorithm. Its static measurement accuracy is up to 0.05 degree(dynamic 0.1) with high stability, which could bring better performance even than some professional Inclinometers!

There is a voltage stabilizer circuit inside the module. The product should be operated at 3.3~5V and its pin level is compatible with 3.3/5V embedded systems. It employs TTL interface for connection. In addition, the module supports an adjustable sensor output frequency between 1Hz~200Hz.

Connection

Specification

  • Voltage: 3.3V~5V
  • Current: <40mA
  • Size: 51.3*36*10mm
  • Measuring Dimension: acceleration: 3D; angular velocity: 3D; attitude angle: 3D
  • Range: acceleration: ±2/4/8/16g(optional); angular velocity: ±250/500/1000/2000°/s (Optional); attitude angle: ±180°
  • Baud Rate: fixed 9600 bps
  • Sensor output frequency: 1Hz~200Hz

Documents

Shipping List

  • Serial 6-Axis Accelerometer x1
  • Wire x1
