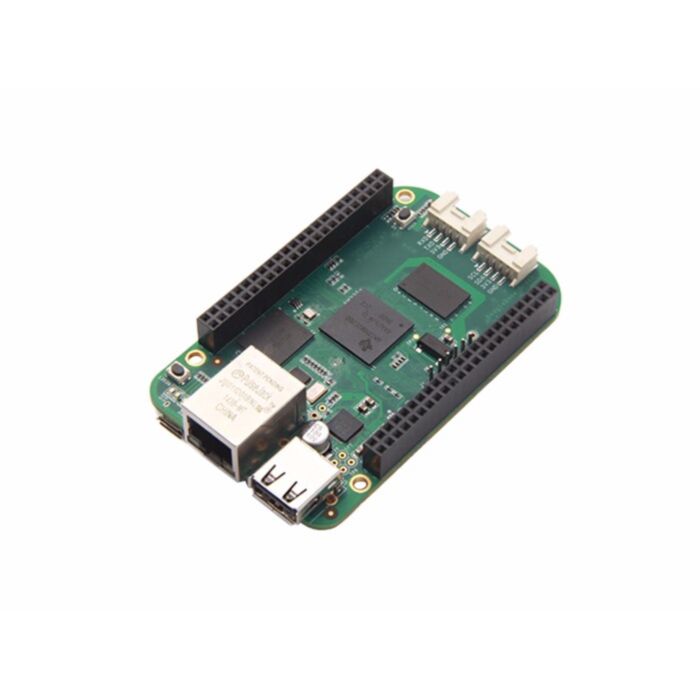

SeeedStudio BeagleBone Green

SKU: SS102010027 Brand: BeagleBone

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

(Jason Krinder of Beagleboard.org announced SeeedStudio BeagleBone Green at Bay Area Maker Faire, the latest version has removed the battery backed up Real Time Clock (RTC).)

One of Seeed Studioâ€™s motto is â€œGrow the Differenceâ€, which has now become part of the culture of the company. This is not just reflected from what we are doing in popularizing open source culture, but also from our products. Ever since the company funded, we are continuously creating our own open platform to differentiate from the existing one such as Seeeduino vs Arduino. This time we would like to introduce a new member of those unique products----Beaglebone Green.

Beaglebone Green (Short as BBG) is a joint effort by Beaglebone.org and Seeed Studio and it was derived from Beaglebone Black (Short as BBB). If you ever heard of BBB, you may know that BBB was the most popular board in the Beaglebone board family. It is much cheaper than previous version while inherits all the good features of Beaglebone. BBG is better than BBB, we have kept almost all the good features of BBB such as the tiny size, abundant interface and strong expansibility, while at the same changed it a bit to make it more powerful.

The main change is replacing the HDMI interface with 2 Grove connectors. Grove is a great invention by Seeed, it is a modular standardized connector prototyping system by which you are able to build applications without soldering and jump wires. With the rapid development of the grove system, more and more sensors, actuators, displays are joining in the grove family, all of them are integrated the standard grove connector, so that you can connect the BBG to them with a simple cable. So far we have produced more than 30 Groves that work well with BBG, and the number is increasing. Apart from that, we also changed the 5V barrel to be micro USB host, so that you can power the board more conveniently.

Note

Please click here to see the full grove list that compatible with BBG.
Grove - RTC is not compatible with Beaglebone Green as it requires 5V.

Despite of the changes we made, BBG is still fully compatible with BBB and applied with all the BBB capes. Even though BBG has all these advantages, we did not increase the price, actually the price of BBG is much cheaper, it may be the most low-cost Beaglebone in history. What we want is to provide a Beaglebone that is not only more powerful and easy-to-use but also reachable to most people. Please donâ€™t hesitate to choose BBG if you need a Beaglebone for your project, I am sure you will like it.

Hardware Overview

BeagleBone Black VS BeagleBone Green

Check the Compatible License from BeagleBoard.org.

BeagleBone Black (BBB) MSRP: USD 55	SeeedStudio BeagleBone Green (BBG) MSRP: USD 39
AM3358 1GHz ARMÂ® Cortex-A8	AM3358 1GHz ARMÂ® Cortex-A8
512MB DDR3 RAM	512MB DDR3 RAM
4GB 8-bit eMMC on-board flash storage	4GB 8-bit eMMC on-board flash storage
3D graphics accelerator	3D graphics accelerator
NEON floating-point accelerator	NEON floating-point accelerator
2x PRU 32-bit microcontrollers	2x PRU 32-bit microcontrollers
USB client for power & communications	USB client for power & communications
USB host	USB host
Ethernet	Ethernet
2x46 pin headers	2x46 pin headers
HDMI port	2x Grove connectors

** SeeedStudio BeagleBone Green is both CE and FCC certified.

Part List

SeeedStudio BeagleBone Green x 1
USB Cable x 1
User Guide x 1

Documents

Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum
