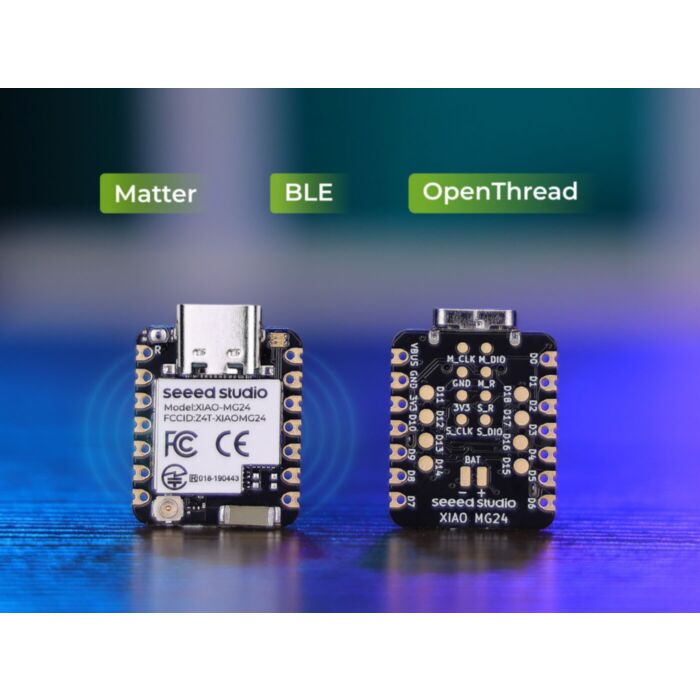

XIAO MG24 - Silicon Labs EFR32MG24

SKU: SS102010590 Brand: Seeed Studio

Discover the Seeed Studio XIAO MG24, a thumb-sized development board featuring Silicon Labs' EFR32MG24 SoC with Matter and Thread compatibility, ideal for IoT projects requiring low power consumption and secure wireless connectivity.

$17.20 AUD, inc GST

$15.64 AUD, exc GST

Quantity Discounts:

10-25 $15.01 (exc GST)
25+ $14.55 (exc GST)

Out of Stock

Features

High Performance MCU: Silicon Labs' EFR32MG24 SoC, 32-bit 78 MHz ARM Cortex®-M33 with DSP instruction
Matter Native: Compatible with Matter® over Thread® and Bluetooth® Low Energy 5.3, Supported by the Arduino® Core
Outstanding RF Performance: Equipped with an on-board antenna with BLE range up to 50m in an open location with no signal interference, while reserving an interface for external UFL antenna
Super-Low Power Design: Power consumption less than 1.95μA in sleep mode, ideal for battery-powered projects
Rich On-Board Resources: Additional 4MB Flash on board, on-board battery charging circuit, 19 GPIOs, LED
Security Encrypted On-Chip: A dedicated hardware secure engine containing its own CPU enables the Secure Vault functions.
Classic XIAO Design: Remains the classic XIAO design of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
XIAO Accessory Add-ons and Kits Compatibility: Natively compatible with all the XIAO accessory add-ons and kits of Grove Expansion, CAN-Bus, LED Matrix, Vision AI Sensor, Round Display, GSP Module, 2-Mic Array, ePaper Display, mmWave sensor, LoRa Module and many more.

Note:

XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here more info.

Specifications

Product	XIAO MG24	XIAO MG24 Sense
Processor	Silicon Labs EFR32MG24	Silicon Labs EFR32MG24
Processor	ARM Cortex-M33 @ 78MHz	ARM Cortex-M33 @ 78MHz
RAM	256kB	256kB
Flash	1536KB + 4MB Onboard	1536KB + 4MB Onboard
LEDs	1 User LED, 1 Power LED	1 User LED, 1 Power LED
Sensors	-	Onboard Analog Microphone Onboard 6-Axis IMU
Interface	22 Pins: 11x Analog,11x Digital, 1x I²C, 2x UART, 2x SPI, All PWM	22 Pins: 11x Analog,19x Digital, 2x I²C, 1x UART, 2x SPI, All PWM
Button	1 RESET Button	1 RESET Button
Security	Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc.	Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc.
Low power	1.95μA	1.95μA
Normal	6.71mA	6.71mA
Sleep	1.91mA	1.91mA
Software Compatibility	Arduino IDE	Arduino IDE
Working Temperature	-20°C-70°C	-20°C-70°C
Dimensions	21x17.8 mm	21x17.8 mm

Hardware Overview

Pinout

Documents

Getting Started with Seeed Studio XIAO MG24
